Latest Projects:

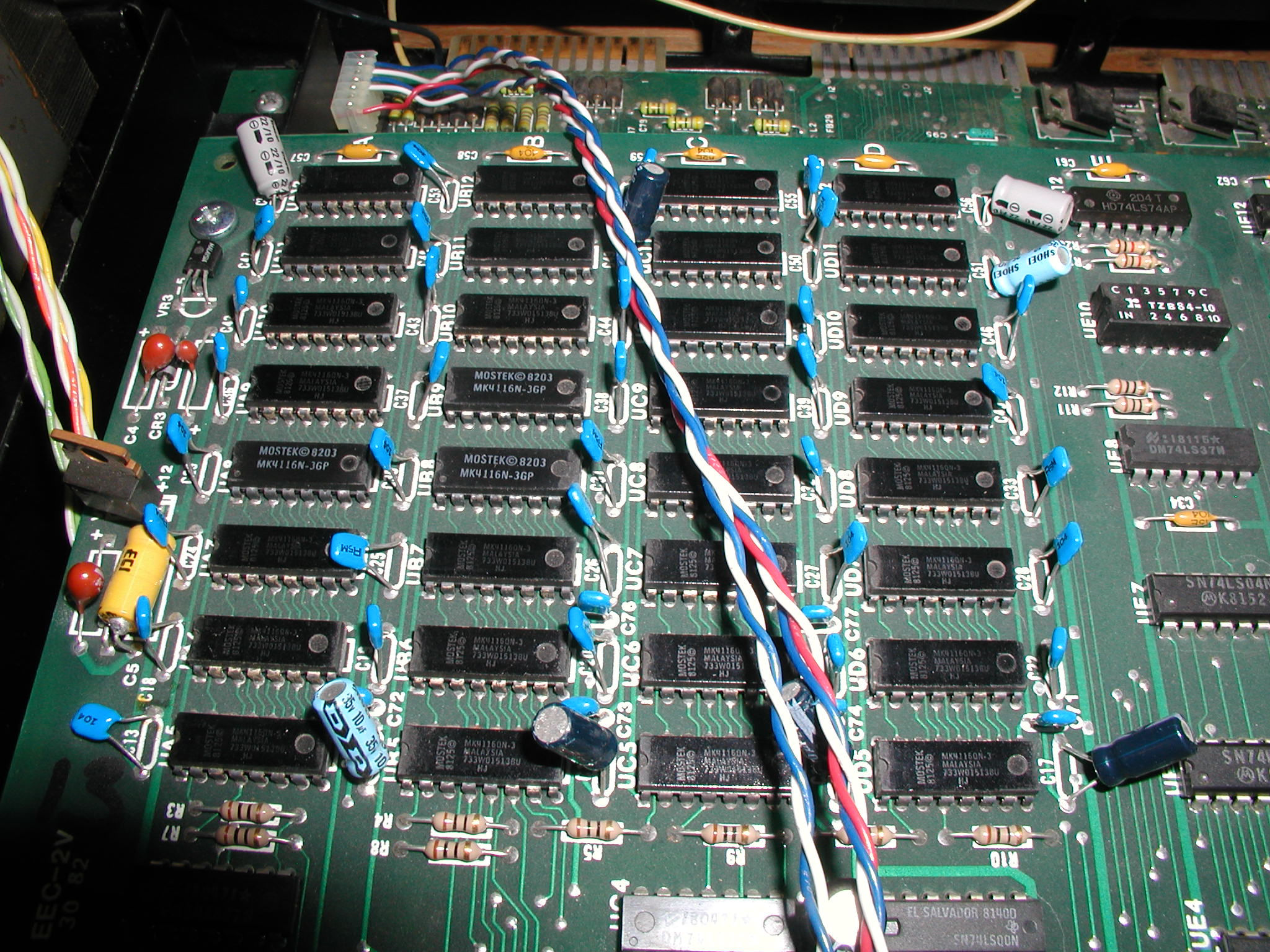

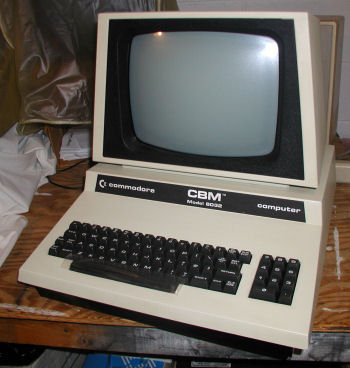

PET 8032 with 64K mem expansion |
TRS 80 Model 1 with Composite Modby billdeg Total messages in this thread: 1 I am working on hacking a TRS 80 Model 1 that will work with a composite monitor. I found this thread from 2003 about it. http://www.classi...uly/017197.html More detail to come.">... [ read more ] |
S-100 Buffered Prototype Boardby monahan_z Total messages in this thread: 2 Updated: [ I/O board ] 10/23/2009 Andrew Lynch and I have just completed the layout of a new S-100 Prototype Board that is designed to help take away the initial drugery of building S-100 prototype boards. We have laid out the board so all the address and data lines are buffered through 74LS245's or 74LS244's. Most of the common S-100 bus control and status signals are also buffered. So the user can right away get down to building useful circuits without the bus connection/IC overhead. Also the board is arranged so a daughter piggyback (no S-100) board can be attached via a series of connectors. This way you can have cheap simple test boards made before you "burn" your own real (more expensive) S-100 board. Currently we are getting 10 of these boards made for ourselves. If there is a strong demand we could possibly do more for others. We don't have an exact price yet but it should be south o">... [ read more ] |
Burroughs L7000 Computerby billdeg Total messages in this thread: 1 I have been contacted by a jewelry store in Newark Delaware who has a Burroughs L7000 computer to donate. I have helped make arrangements to have this picked up and delivered to the MARCH museum in Wall New Jersey, part of the InfoAge complex at Camp Evans. pics">... [ read more ] |
1975 Microcomputer Directoryby billdeg Total messages in this thread: 1  The COSMAC Microkit 1 (RCA) was an early 1801 microcomputer kit from 1975.
A directory of microcomputers was compiled by Robert M. Grossman, Associate Editor of EDN Microprocessor Design Series Volume II. Robert wrote an article titled µC Systems Directory: where have all the µP's gone?.
NOTE: µC = "microcomputer" and µP = "microprocessor.
 More 1975 microcomputing devices: The Microcontroller (Scientific Micro Systems), the M6800 (Motorola), and the MicroPac 80 microcomputer (Process Computer Systems)
MITS is listed as a manufacturer and so are a lot of very interesting other companies, some I never heard of, but I am missing the page that lists the models">... [ read more ]
|
Selected 1975 Microprocessor Diagramsby billdeg Total messages in this thread: 1 RCA 1801, Intel 8080, MOS 650x, and Motorola 6800 diagrams">... [ read more ] |
Compute!by billdeg Total messages in this thread: 1 Did you know that Compute! was "Compute." for the first two issues? For future reference here's what I have on hand: vol 1 issue 1 Fall 1979, issue 2 Jan Feb 1980. vol 2 issue 7 Nov / Dec 1980 vol 3 issue 1 Jan 1980 vol 3 issue 9 Feb 1981 -through- issue 16 Sept 1981">... [ read more ] |
MITS Altair 8800aby billdeg Total messages in this thread: 1 Here are some pictures of my MITS Altair 8800a model. This unit has been on loan with Dan Roganti who has restored power to the unit by replacing some caps (I believe). More to come in early 2010.  The relatively rare Altair 8800a model was advertised by MITS for less than a year. Note the front plate variation compared with the original model. Click image for larger view.
See also front panel project:
http://vintage...rowse_thread.cfm?id=317">... [ read more ]
|
Vintage Computer Festival East 6.0by billdeg Total messages in this thread: 1 Pictures from the Vintage Computer Festival East 6.0 held September 12 and 13th at the Info Age Science Center in Wall, NJ USA  William (Bill)Dromgoole's "..Ohio Scientific Superkit with a homebrewed power supply and no case, 25x25-character display, and external parallel ASCII keyboard. The Superkit consists of model 500a CPU board, model 480 backplane, and 440b video card. Also installed are a model 430b cassette I/O interface with D/A and A/D converters and model 420c memory cards. .." One of my favorite exhibits.
Pictures">... [ read more ]
|
Examine using Front Panel - problemby billdeg Total messages in this thread: 2 Updated: [ Examine using Front Panel - correction ] 09/25/2009 This is a note to self. I have an Altair mentioned elsewhere on this web site, SN 220744K, and the front panel has been mod-ed to with both IMSAI and Altair front panel connectors so either CPU interface card can be used. When the Altair card in installed, examine does not work. Here is a substitute for examine in the mean time assume you're starting from 000 000 but you want to examine what's in c000. deposit load the following: 000 303 jmp [a7, a6, a1, a0 up] 000 000 lower [all down] 000 300 upper [ a7, a6 up] = c000 reset put all toggles down single step = watch for a15, a14 up = c000 now that you have jumped to c000, you can use the examine next. NEXT: try system with imsai CPU card, see if examine works. If yes, then it's the cable, if no, then it's the front panel (someplace). See also post about the power supply capacitor for this system, needs replaci">... [ read more ] |
Processor Tech General Purpose Moduleby billdeg Total messages in this thread: 4 Updated: [ Further attempts to fix PT GPM card ] 10/18/2009 For my own reference, I took some pictures of Bill Sudbrink's Processor Tech General Purpose Module card, which is similar to mine except that he made some modifications to protect some of the F000+ memory when CUTER and NorthStar DOS try to use the same spaces. Here are the pictures I took: Processor Tech General Purpose Module Mods for NS DOS and CUTER Of course now I have a problem with my CUTER program, I must have blown an IC. Next - find and repair the bad component. ">... [ read more ] |
Televideo TS-816by billdeg Total messages in this thread: 1 I took this system out for a spin, it had been 4 or 5 years. Still works great. Here are some new pictures.  The Televideo TS-816 has no internal disk drive, only a tape unit, which is used for backup and restore operations. Fortunately the hard drive will still boot and support multiple terminal operations. I used the serial port from a laptop to load the BASIC program ELIZA from console mode and then ran the program on separate (Televideo) terminal in user mode. ">... [ read more ]
|
Site for info/pictures for S-100 Boardsby monahan_z Total messages in this thread: 1 Well I have spent the past 2 months putting together a central database of most S-100 boards with pictures, comments and (where possible) manuals for each board for the web site www.S100Computers.com. If I had known it was going to be so much work I'm not sure I would have started! Anyway most of the major S-100 board companies are there. I obtained pictures and manuals from all over the web, my own fairly large collection, and pictures and manuals sent in by a number of great individuals who helped out. They are listed in the acknowledgement section. From the S-100 Boards section of www.S100Computers.com you arrive at a central page from which you go to each manufacture. To get started go here:- http://www...0Index%20Page.htm As you can see we are still missing pictures of a few boards (or they are very poor). A number of manuals are missing. Pleas">... [ read more ] |
CompuPro Advertisementsby billdeg Total messages in this thread: 1 GodBout changed it's name to CompuPro in late 1980. Here are a few of the first ads from this era, 1980-1981: CompuPro CPU 8085/88 (8 - 16) CPU CompuPro Interfacer I and Interfacer II CompuPro Static RAM (various) CompuPro Product Listing Ad Download PDF format">... [ read more ] |
converting files from ascii to PRGby billdeg Total messages in this thread: 1 Let's say you write, scan, or transfer somehow an ASCII file that contains a BASIC program. How do you get it to your Commodore? Here is how I do it. The files are here 1. Start with an ASCII listing of your BASIC program. Save it as "myfile.txt" 2. Download all of the files from TOK64 to your PC (MS Windows) 3. This command will copy your code to PRG format TOK64 /toprg myfile.txt If that does not work, you may have to type TOK64 /list to see all commands. 4. The program will convert the ASCII program to Commdore PRG 5. Use D64 Editor to pack the PRG file you created (MYFILE.PRG (and any others you may wish to add) into a single disk image. You can start by creating an empty 64 image and then import MYFILE.PRG into it. 6. I use MM64 with RR-net op">... [ read more ] |
|
