Sperry UNIVAC 1219 Military Computer

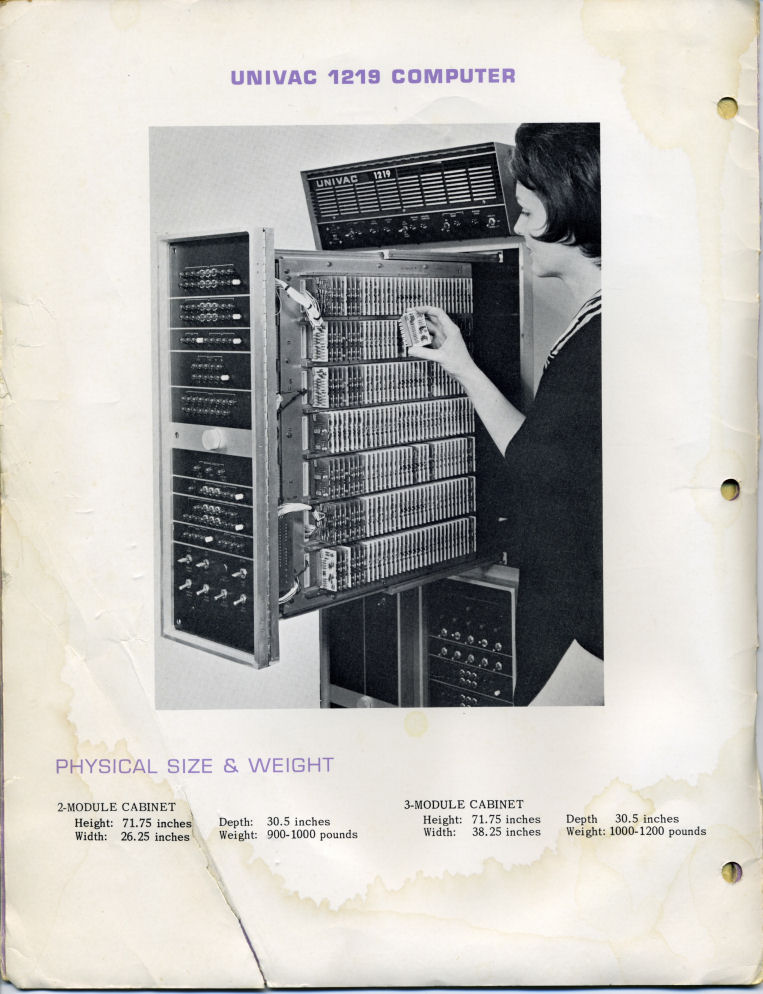

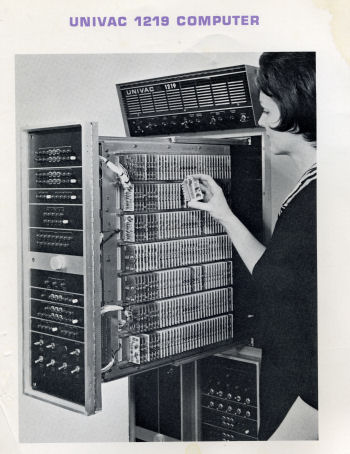

Woman demonstrates insertion of printed circuit modules
Earlier this spring I received the sales brochure and a dual nor gate component from a mid 60's Sperry Univac 1219 Military Computer. Tom Morrison, who sent me these materials operated the 1219 while in the Navy. In addition to the sales brochure he also sent me hand-written notes and the repertoire of instructions from a MK 152 targeting computer.
Tom writes: "..There were hundreds of the cards in rows. ... We did not have any way to run an assembler on the ship. Our main programs were on mylar tape, punched bioctal that we fed through a reader. Later on there were cassette tape loaders. Output was to teletype. (The 1219 was an) 18-bit machine with the ability to double out to 36 bits for more accurate computation. Each instruction took micro seconds. The real-time clock could be turned off and then the machine could be stepped through a phase at a time, also there was the ability to do an instruction one at a time. This was called operational stepping. The 1219 was wire-wrapped. Our ship's ICR (index control register) was miswired - the zero and one bits were reversed. Every time we loaded a program we had to call up certain addresses and change them before we run the program. All of the inputs/outputs were fed through a digital-to-analog box to run the missile system. The designation to a target was then used to make orders for the track radar. When the radar was tracking, missile orders were sent to the missile and launcher. There were gyros on the tracking radar and the master gyro was an input to modify outputs. The pulse frequency for the radar was used to compute range and speed..."
"..Memory was a magnetic core of 128K. There were cards that were just for loading, like ROM. Lower addresses were for interrupt and modifiers. Index control, B register and P register extension allowed addresses different memory stacks. THe I/O was 8 channel with the ability to handle 8 peripherals each. I/O was scanned with the lower channel having the highest priority..." -- Tom Morrison, 2007

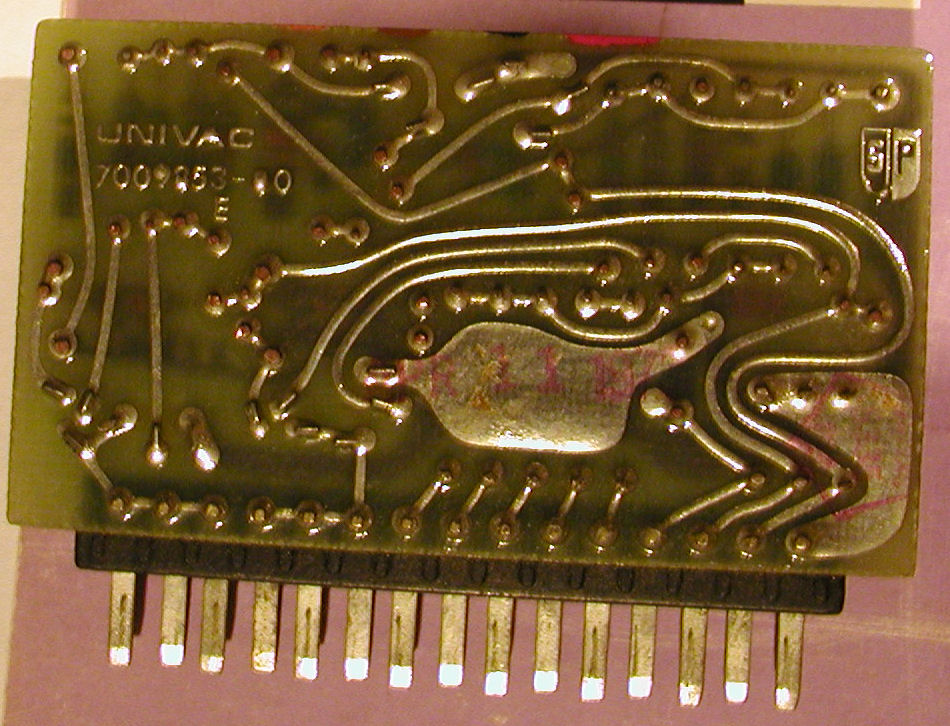

Backside closeup of dual nor gate card from Univac 1219. The woman in the picture above is holding a similar unit

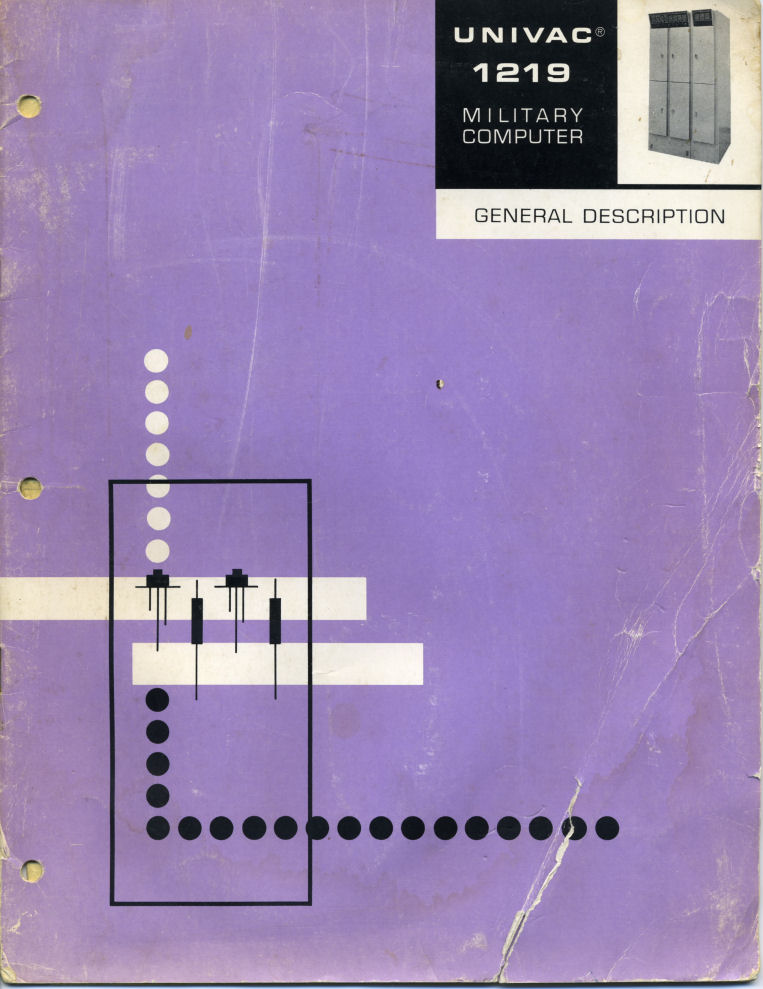

Sperry UNIVAC 1219 Military Computer Sales Brochure

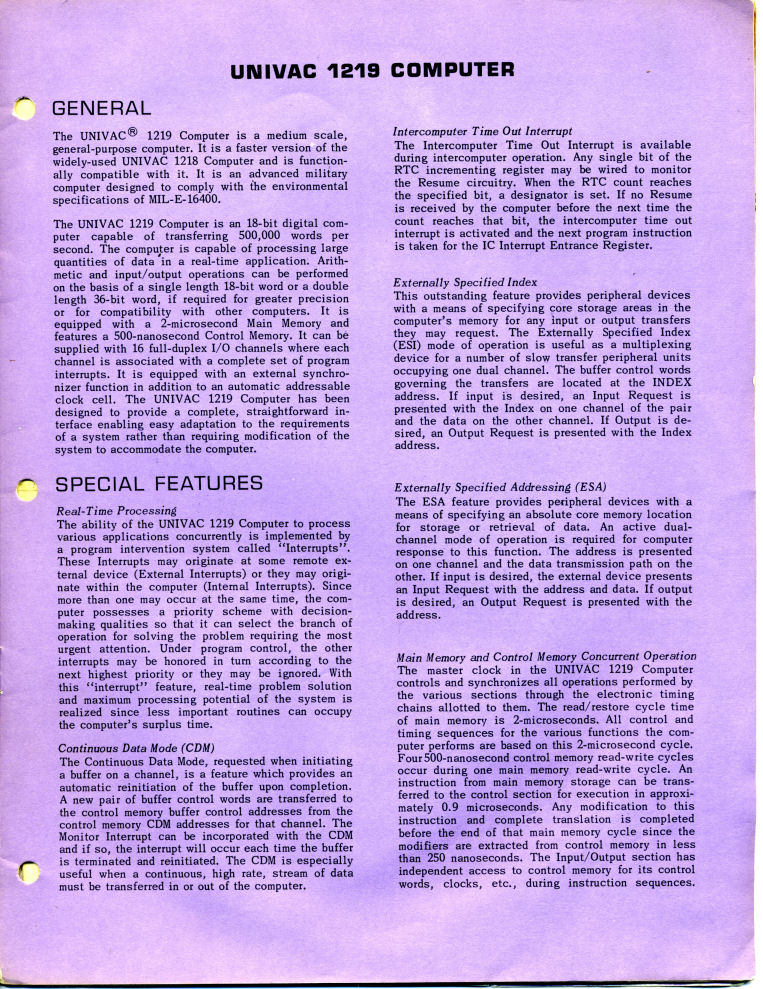

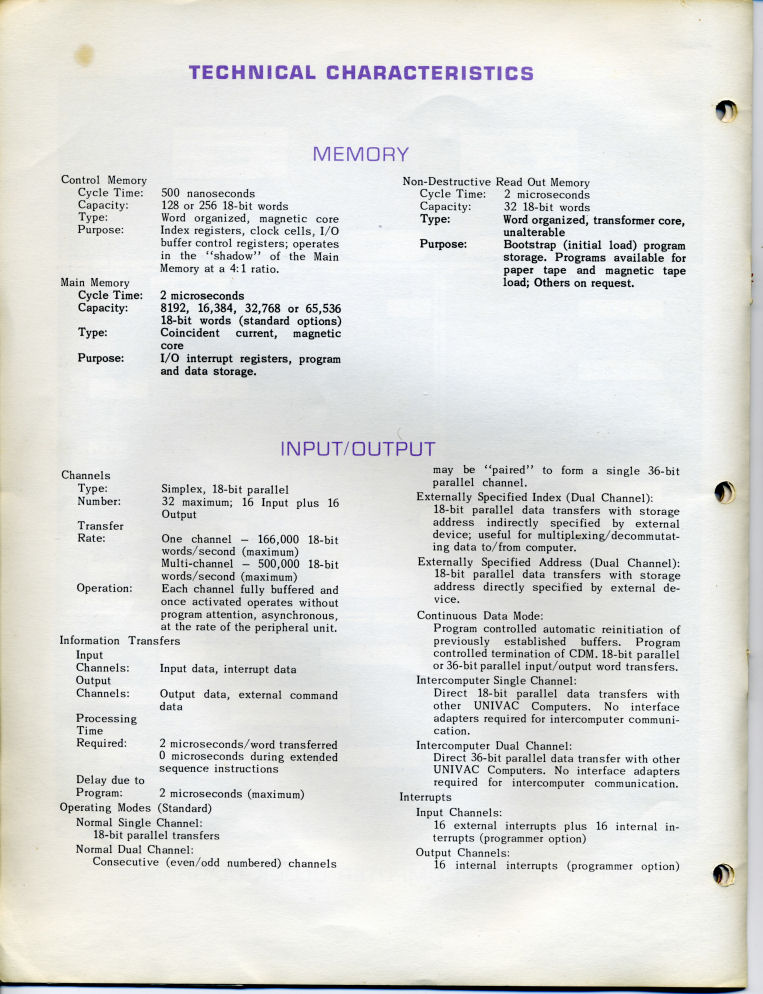

General / Features
System Interface / Support

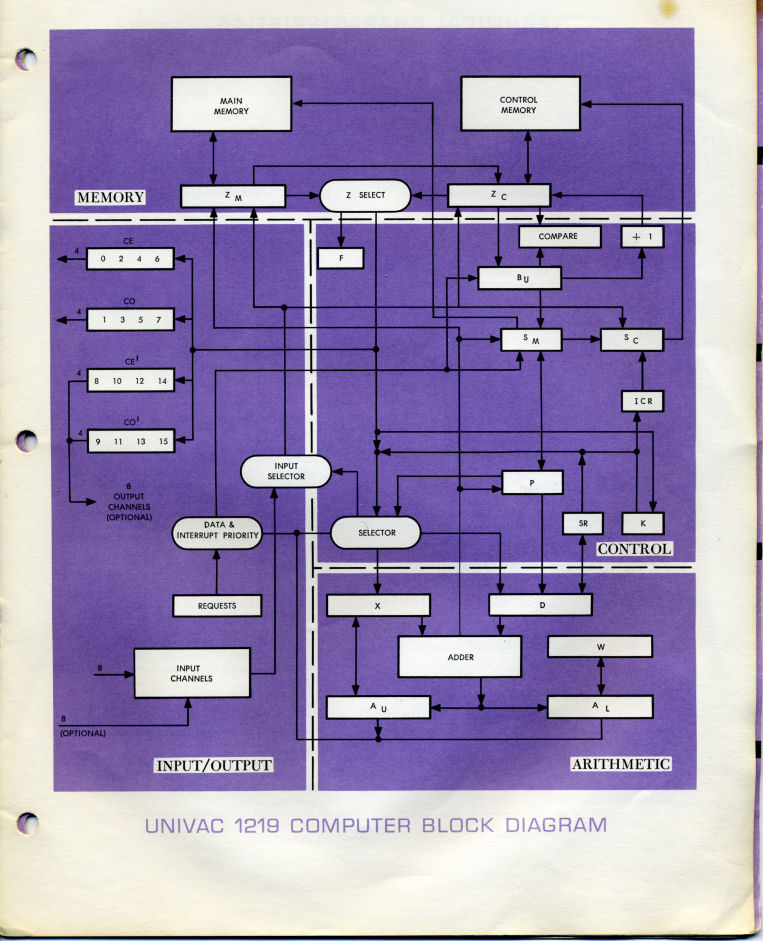

Univac 1219 Computer Block Diagram

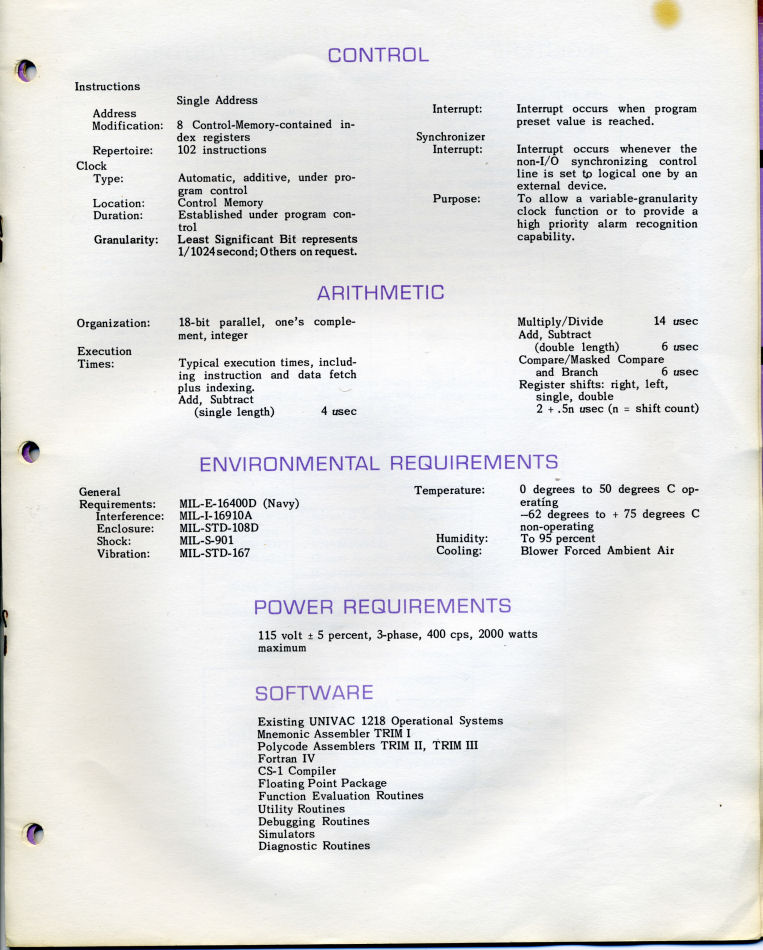

Control / Arithmetic / Power Requirements / Software
Registers / I-O Control Signals

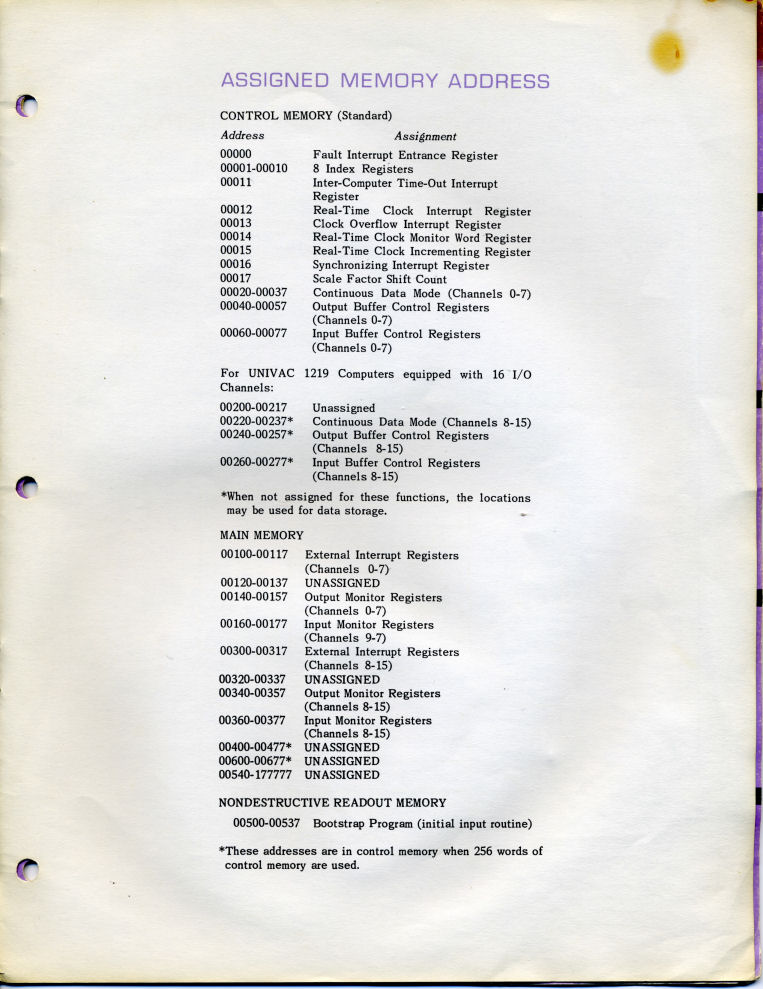

Assigned Memory Addresses

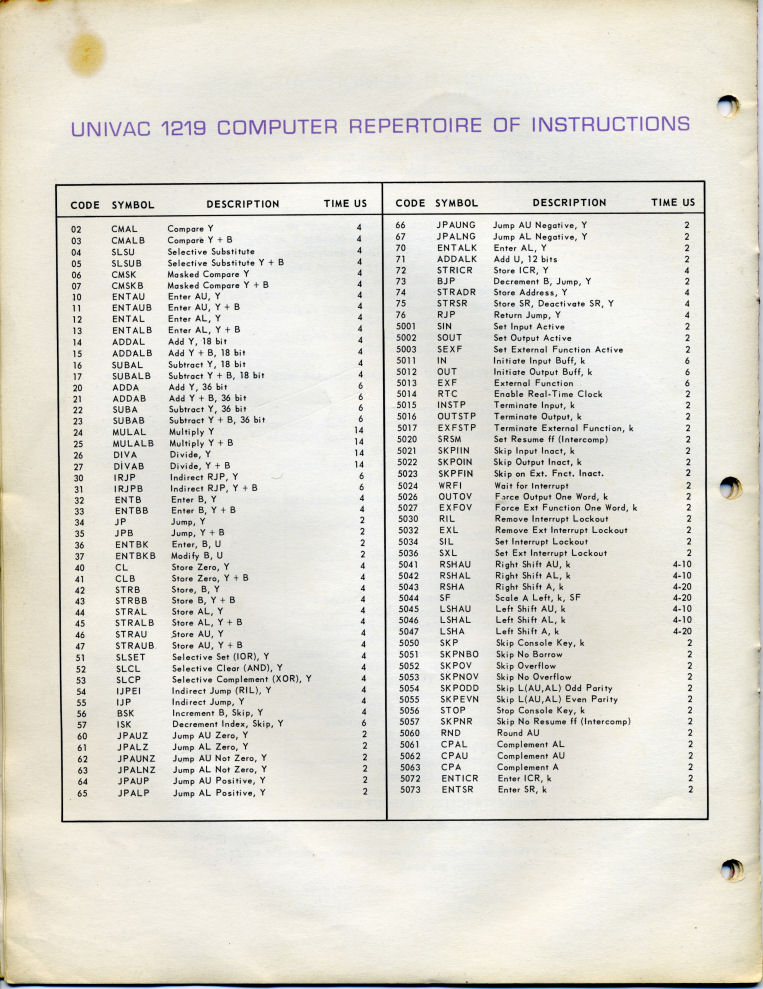

Computer Repertoire of Instructions

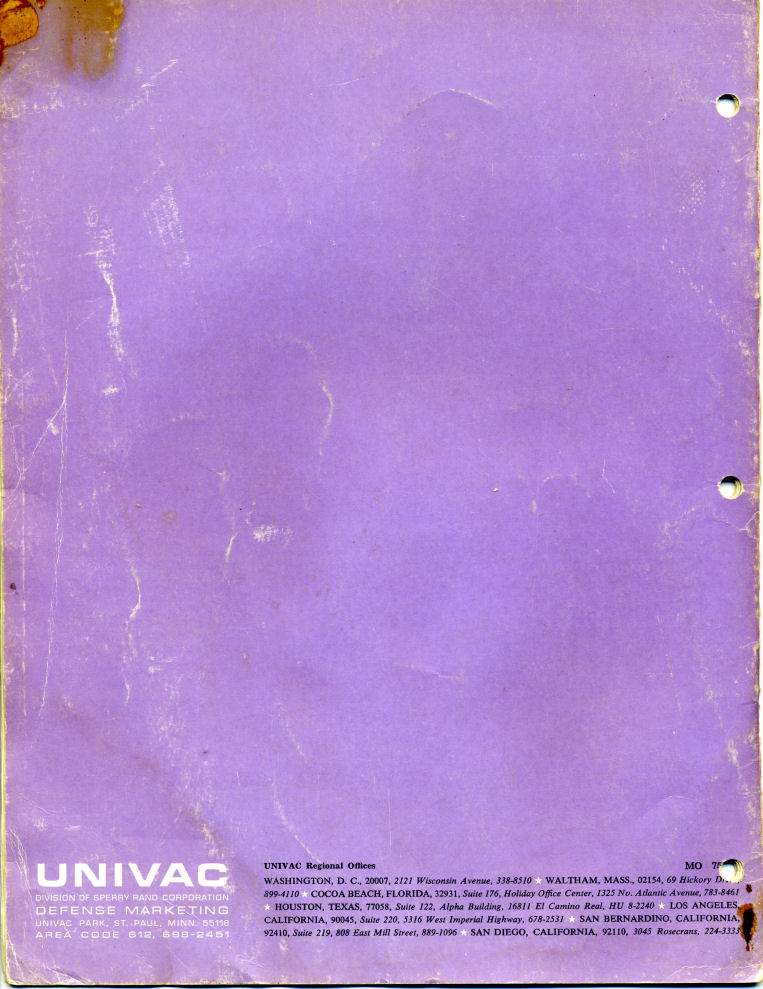

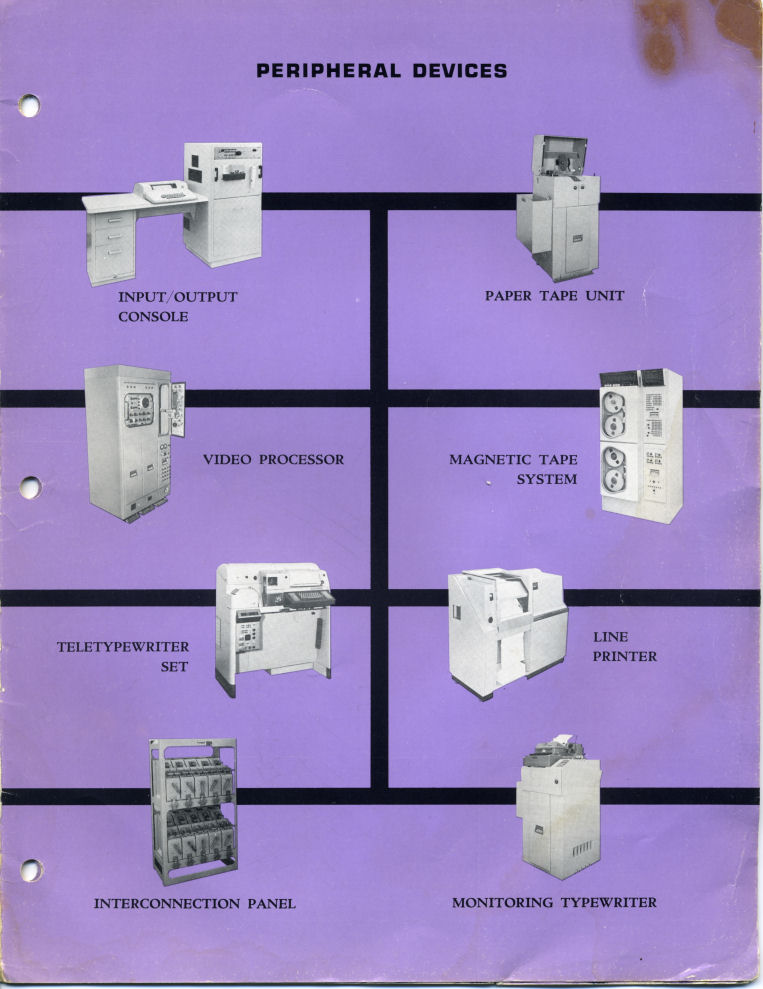

Inside Back Cover
Click here to enter your comments.

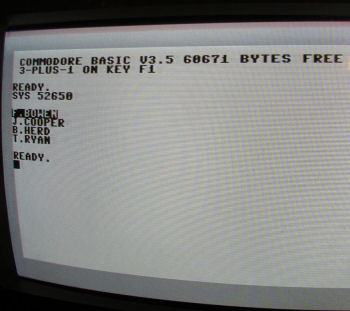

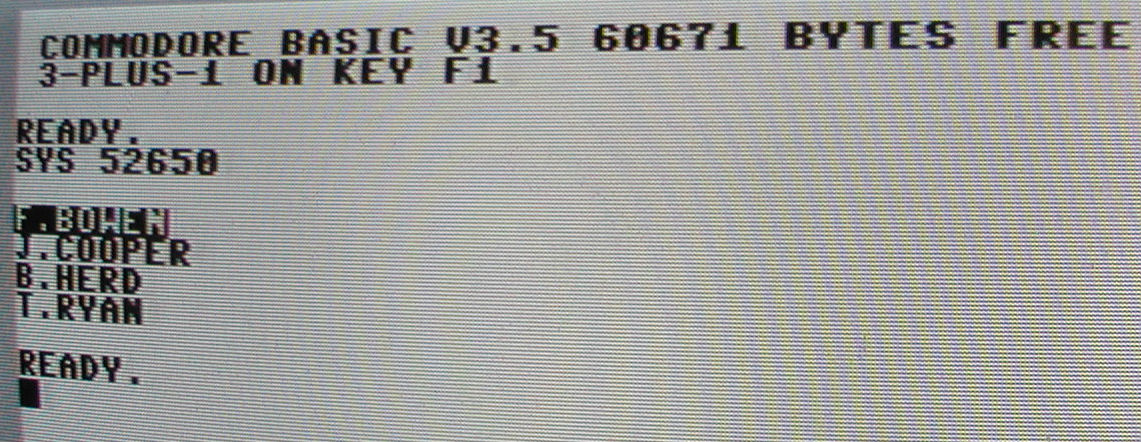

Commodore Plus/4 Easter Egg
Who's J Cooper?
In a recent conversation on the CBM-Hackers user group, none other than Bil Herd revealed to the group that there is an Easter Egg on the Plus/4 system. ".. John Cooper is/was a very real person, he once threw a fake brick at my head. He did code revolving around the cassette and other stuff, he didn't stay at CBM long after the TED came out, none of us know where he went after that.
Fred Bowen did the Kernel, which would explain why his name is highlighted.
I did the hardware though the reality is the hardware design was really dictated by the chip since it was the closest thing to s single chip computer for it's time. Just add a processor, some rom, some ram, some more decoding, a reset circuit and oh yeah, a keyboard buffer. And a handful of analog circuitry, some RFI filters, a modulator....
The address we used to remember it by, if memory serves, was sys dec($cdab) or in other words we would think of abcd, byte swap it and then go to the decimal equivalent. (we byte swapped automatically those days which meant dialing the last four digits of a phone number could occasionally be a challenge) I still remember the day Terry Ryan described that this was in there and where it was. For the C128 it was something like take half of total memory, round up, then 123,45,6 .."

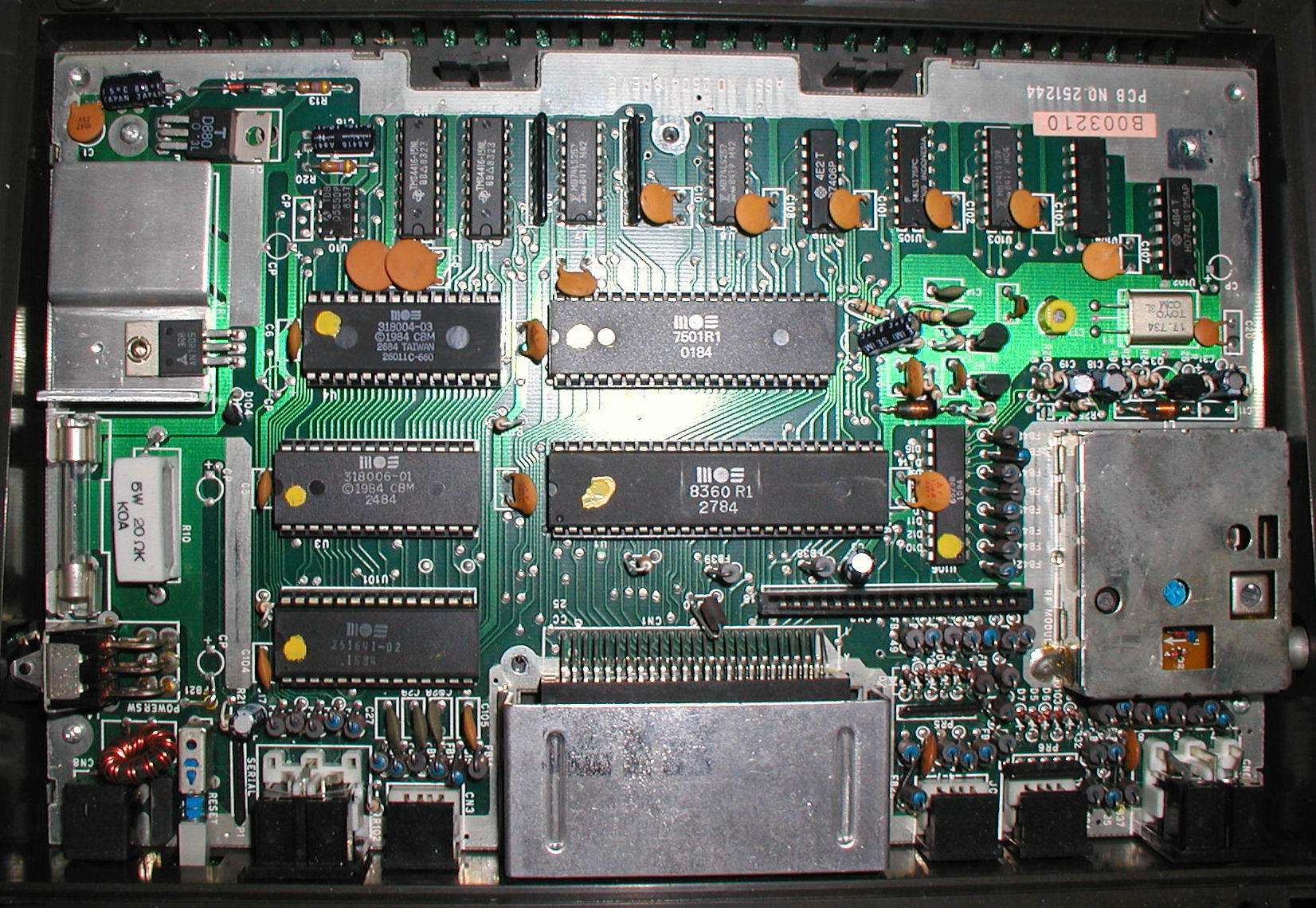

Speaking of TED chip systems, here is a link to a hi-res image of a C-116 motherboard. I could not find a good one on the web, so here you go.
Happy 30th Commodore PET

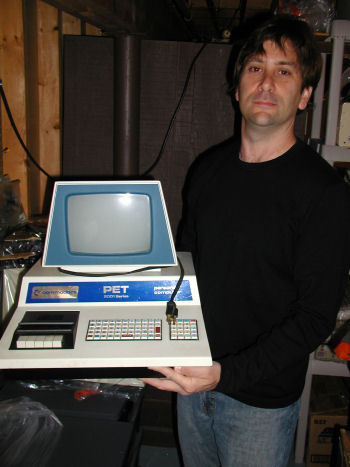

The Commdodore Pet 2001-8
Yes that's a picture of me. Bryan Pope and I worked together to restore this system to full functionality. It needed a little cleaning and a new keyboard. Works great now.
More Comments and pics.
Commodore Prototype on display in June 1977
Making an IBM 1.1 Boot diskMake a bootable MS DOS 1.1 disk of your very own by following these simple directions.

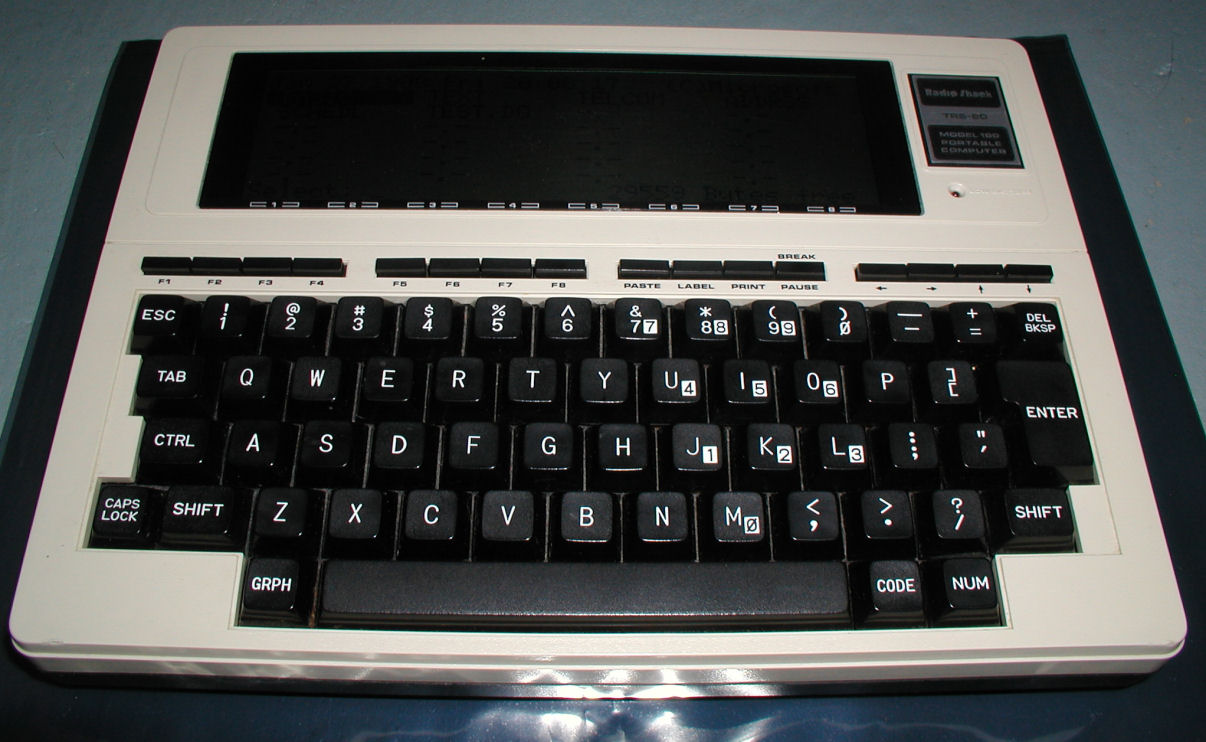

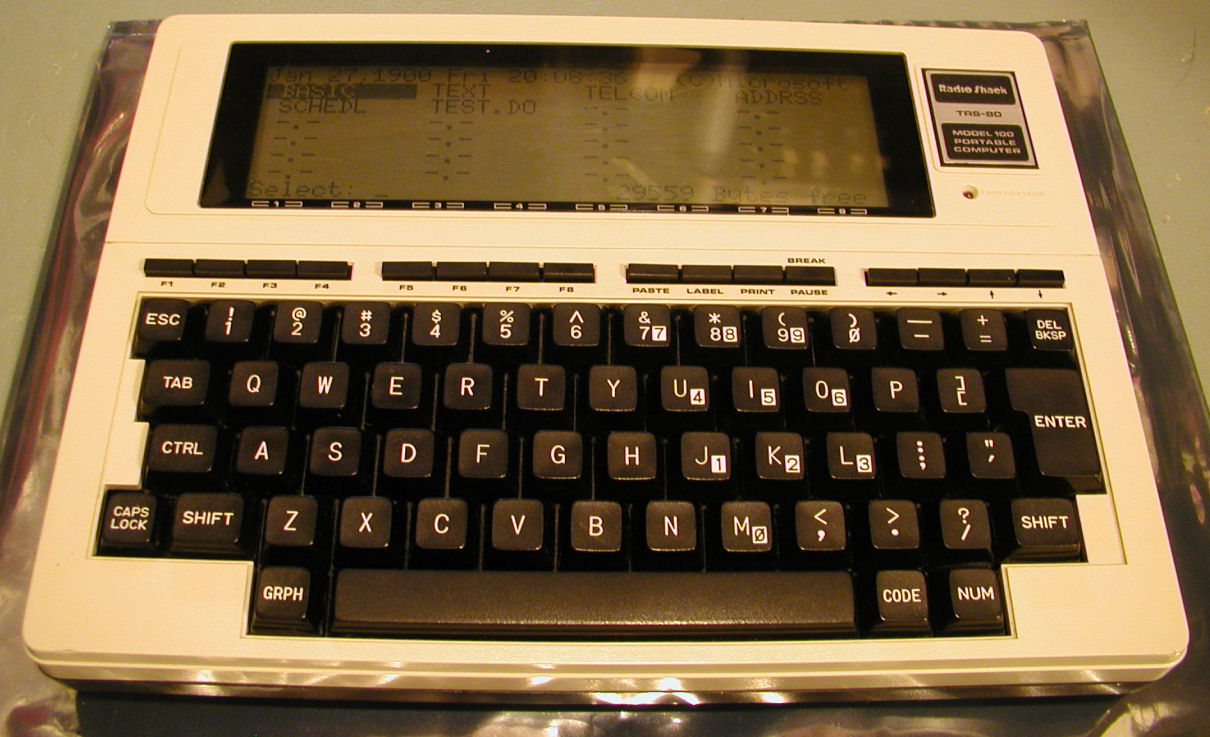

TRS 80 Model 100
TRS 80 Model 100. Click Image for larger version

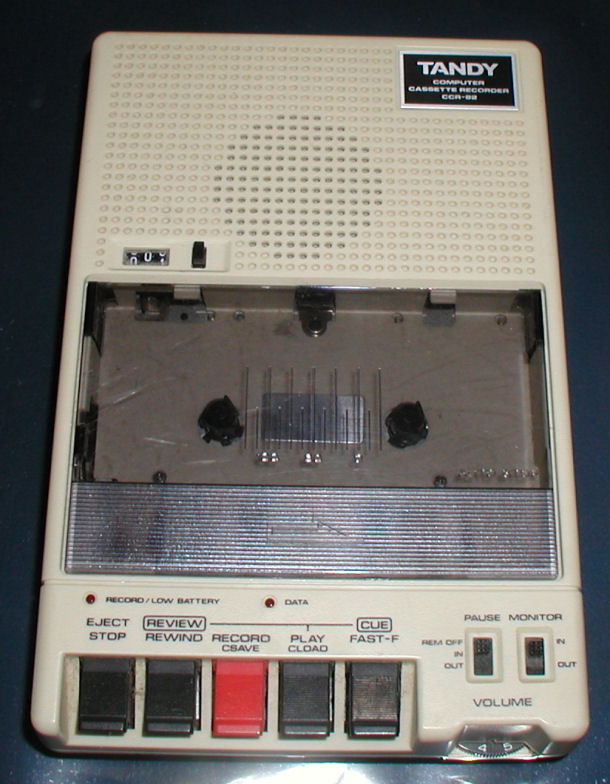

CCR 82 Cassette. Click Image for larger version
I picked this up locally. Complete system in the box, with cassette and disk drive (not pictured). Ran some simple tests and will come back to it later.
On the Work Bench - May 2007These are some of the computers and things that I am currently working on, or have recently picked up. Check my Vintage Computer Blog for updates, or post your questions.

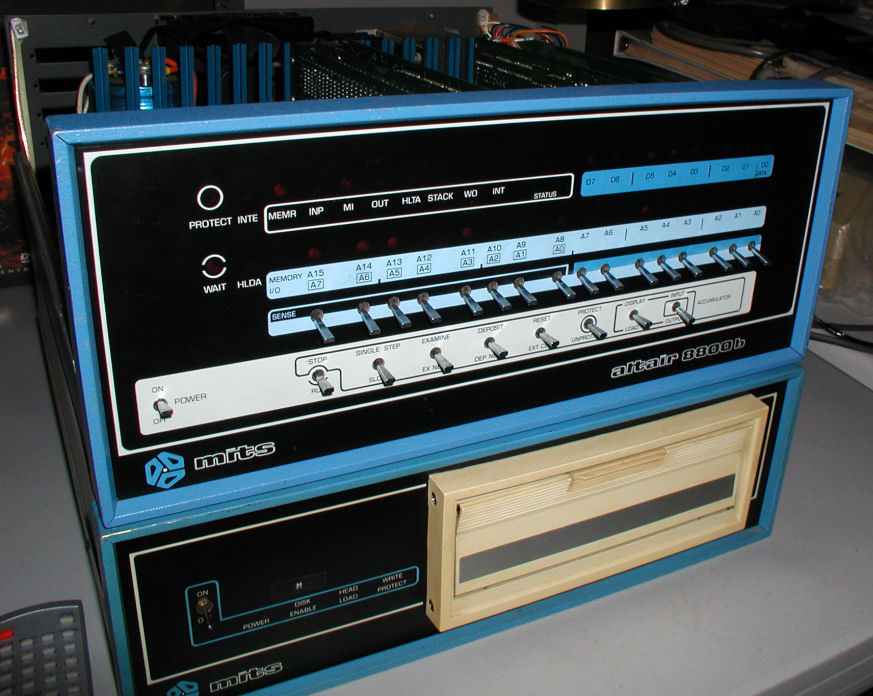

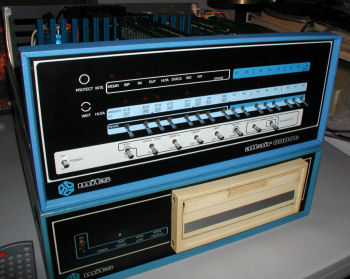

MITS Altair 8800B
Click Image for larger version
Ahh...Very little restoration was needed for this system. I have learned a lot from the good people at the Altair Computer Club and a lot of reading.
Click Image for larger versionThe power supply was performing weakly, so I disconnected the fan from the internal power supply and attached a separate power plug for just the fan to connect to an outlet.

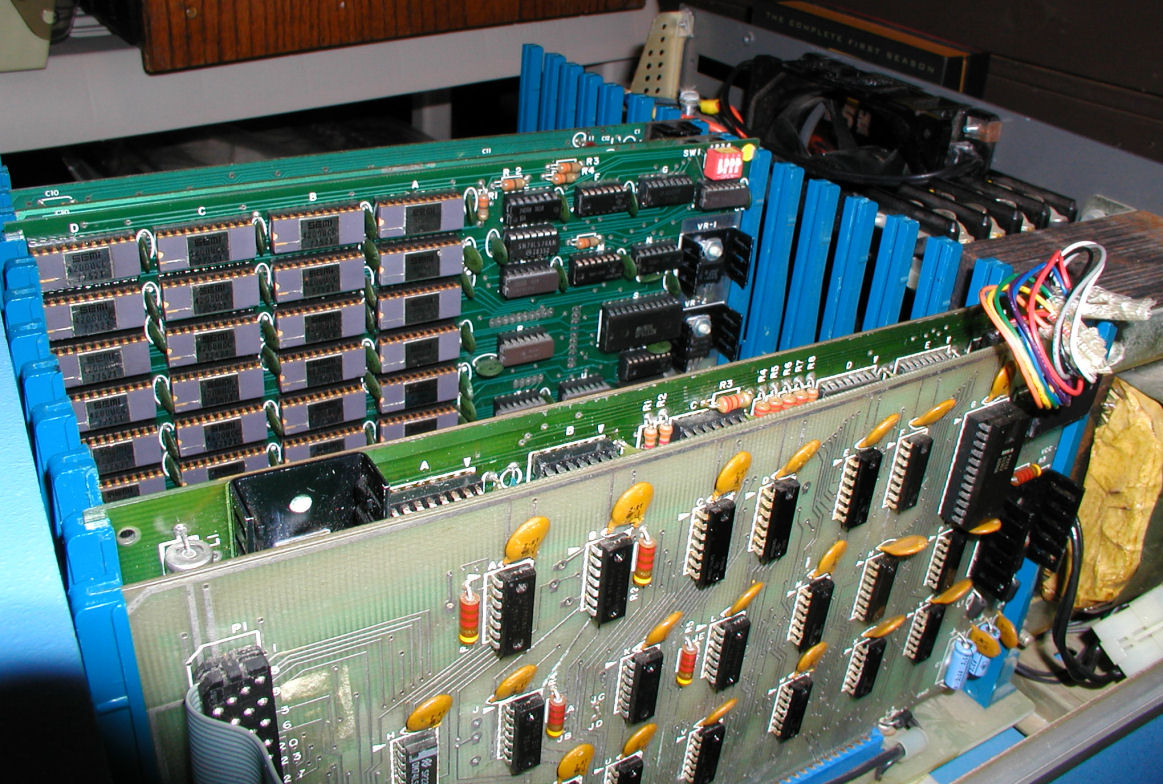

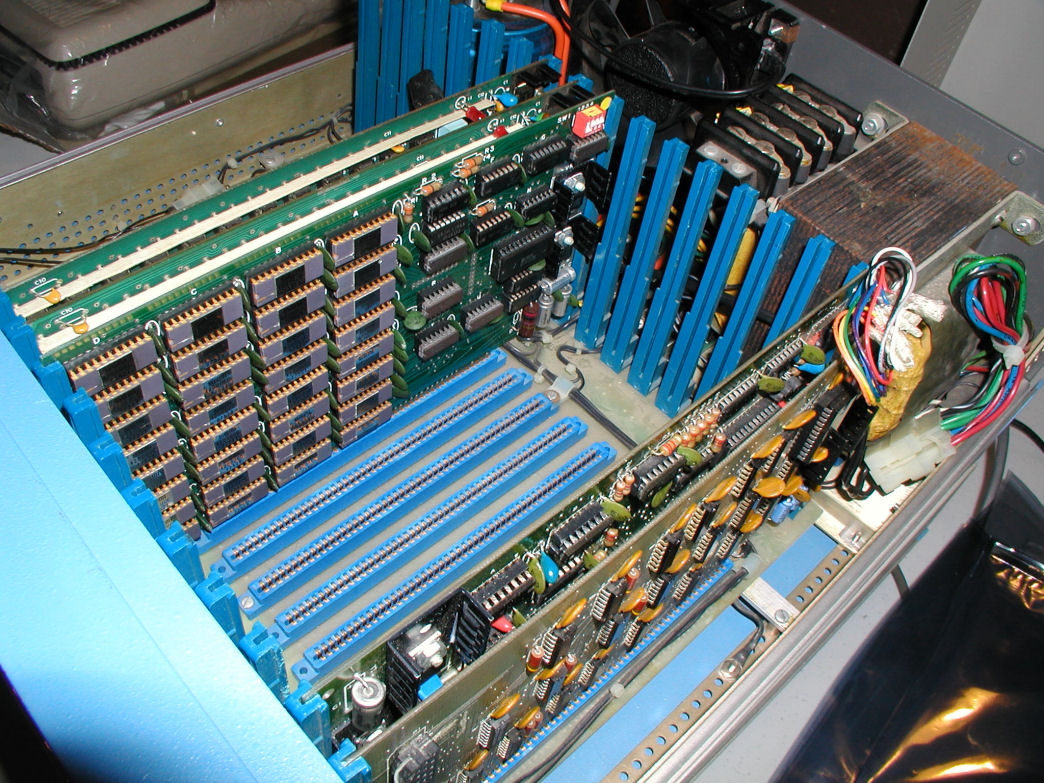

Click Image for larger versionLastly I moved the three memory cards (total=48K) next to the fan. Using the manual I tested the memory.
Share your thoughts and suggestions here

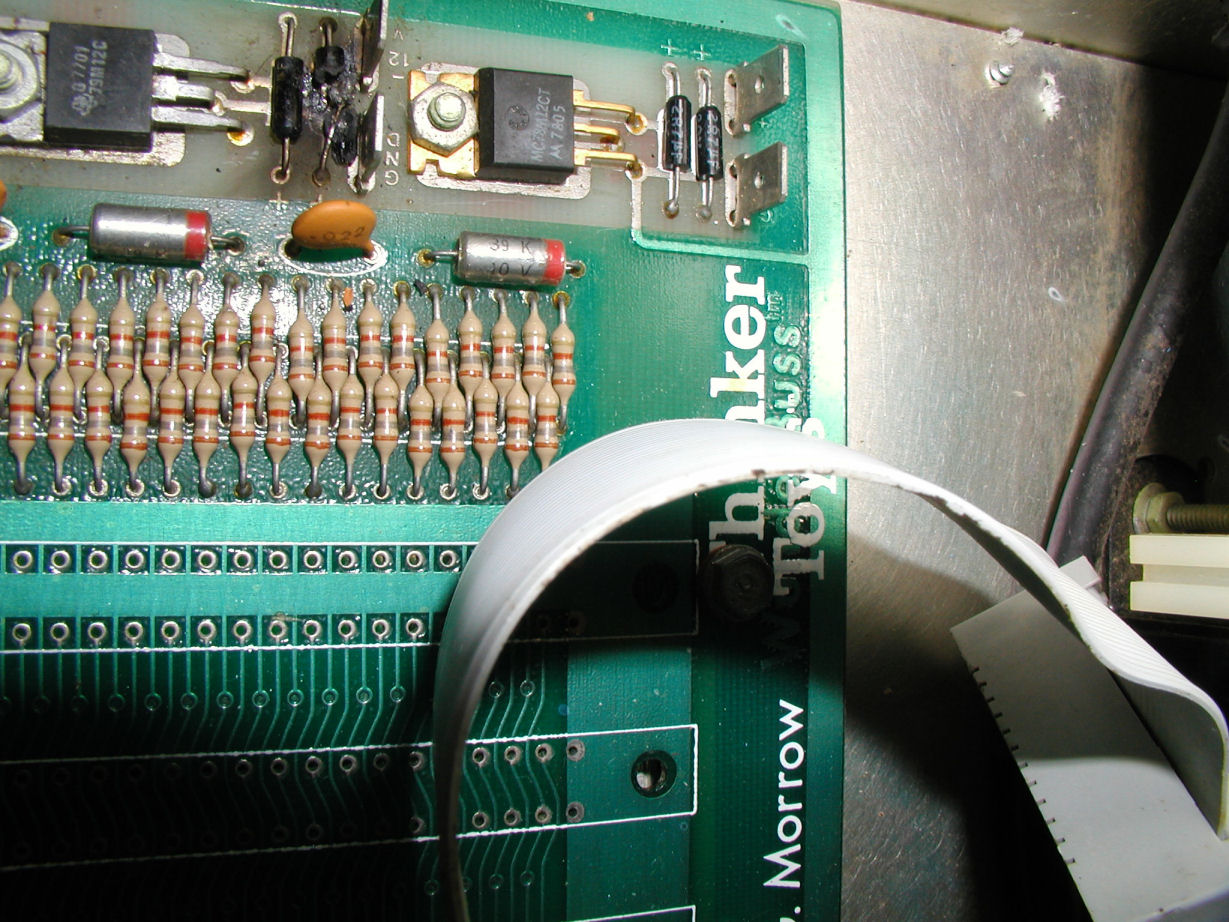

1977 Morrow Wunderbuss "Thinker Toys" S-100 Motherboard
Click Image for larger version
Note the blown electrolytic capacitor at the top of the image. This is a work in progress...The board was installed in an IMSAI 8080 computer configured to use an ASR 33 Teletype. I am very much interested in getting this system up and running with the teletype.
Click here for a progress update / make comment

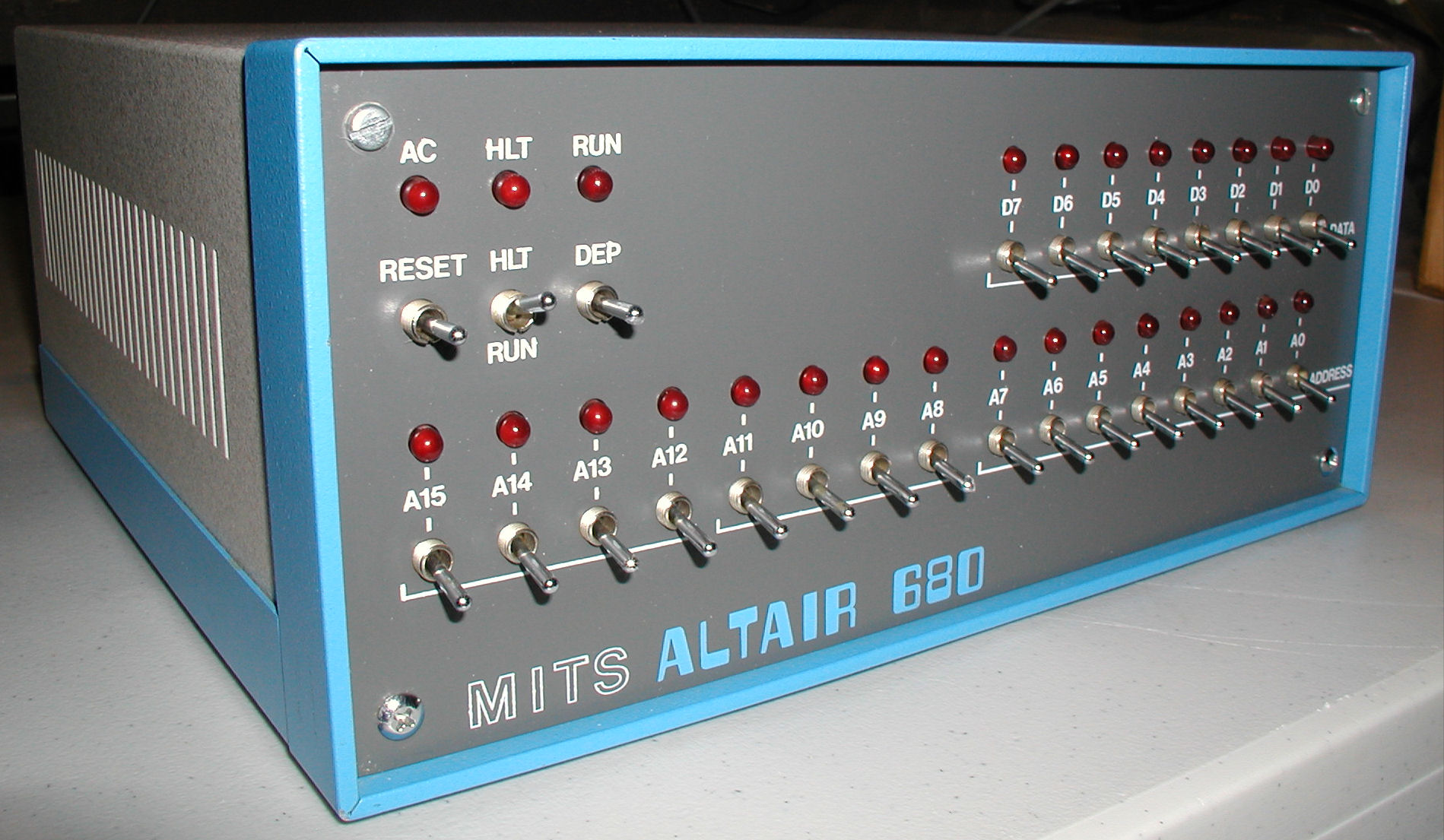

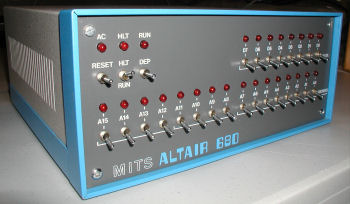

MITS Altair 680B
Click Image for larger version
I spent a number of hours working on this system. I reviewed the documentation, tested the memory, and I picked up a ACIA monitor ROM from a kind member of the Altair Computer Club. All seemed to be working, but I was unable to send output through the RS232 port to a display/monitor. I brought the system to the Trenton Computer Festival to meet with other members of my computer club, the Mid Atlantic Retro Computing Hobbyists. Dan Roganti, Brian Applegate, and Brian Pope helped locate and fix a wiring problem (wrong pin connection) and now the system communicates with a terminal, displaying the dot prompt.
