Commodore PET 30th Anniversary

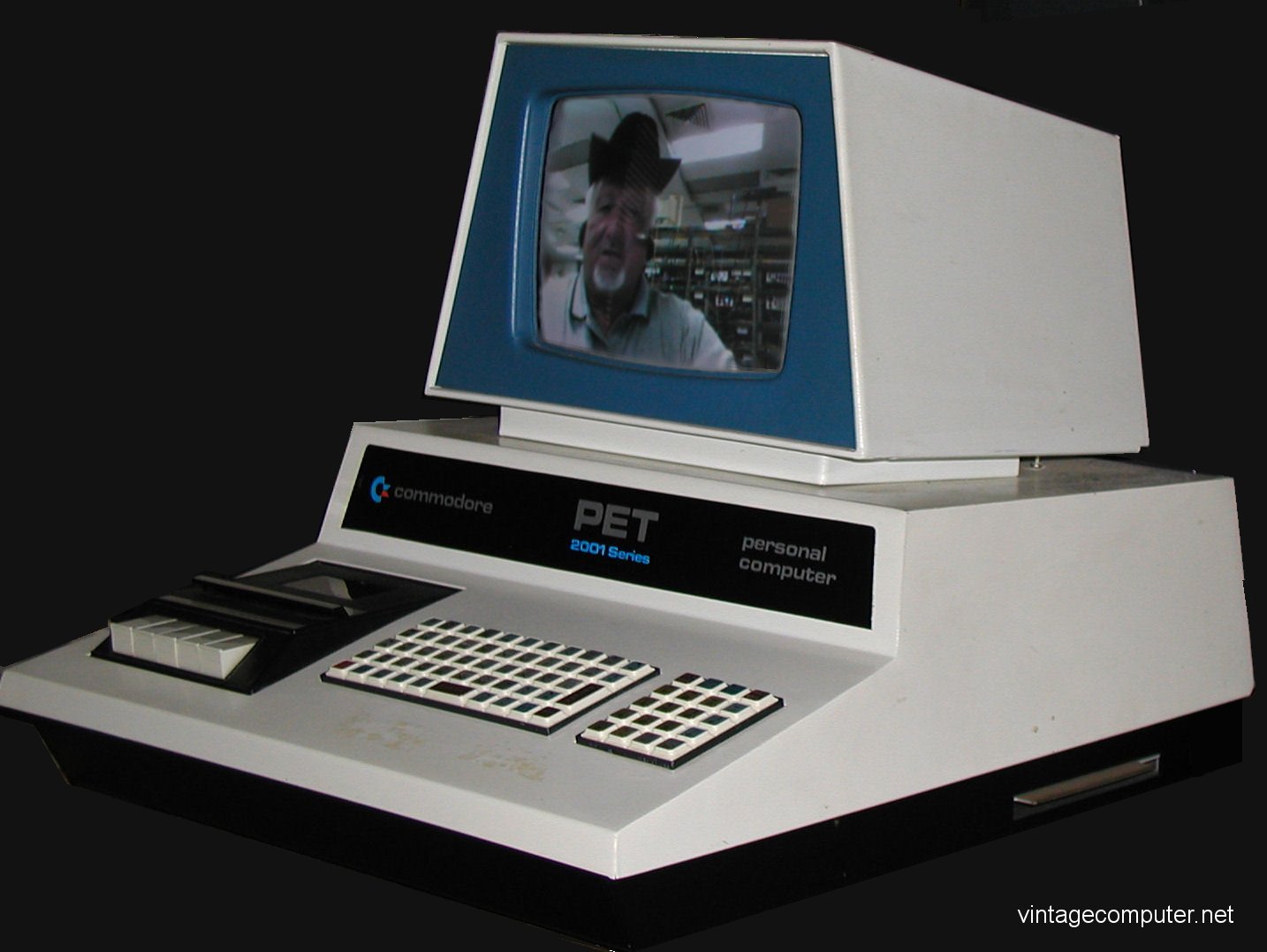

June 2007: Footage from the Vintage Computer Festival East. Chuck Peddle speaks on the PET 2001 (Click for larger image)

There is an article in the October 1977 issue of Byte Magazine about the National Computer Conference in Dallas, TX June 13-16 describing all of the new computers and manufacturers' wares . Included in the article, on page 54, is a picture of a prototype PET 2001 from the event. Even earlier photos exist from the January 18-20 Gametronics Convention. To my knowledge the Gametronics photo is the first public display of a PET. Note the different front name plate.
Compare that photo with the image above and this photo, of a early production PET 2001-8 with the classic blue face plate and monitor. ...Comments?

30 years after the Dallas convention, Chuck Peddle helped commemorate the occasion by speaking at the Vintage Computer Festival East 2007 via Skype video conference. Mr Peddle shared his recollections of how the KIM and PET came to be and described the early days of Commodore computers. Chuck detailed the relationships between Commodore, Microsoft, Apple, CP/M, Bill Gates, BASIC, MOS, and the early computer fairs.

Following the video conference, a panel discussion about later Commodore history included former Commodore / Amiga engineers Bil Herd, Bob Russell, and Dave Haynie. These gentlemen brought with them some prototype boards and rare computers from the mid to late 1980s.


Bob Russell, Bil Herd, Evan Koblentz (MARCH pres.), and Dave Haynie holding the Commodore PET 30th birthday cake.

Commodore Prototype Photos from VCF East 2007

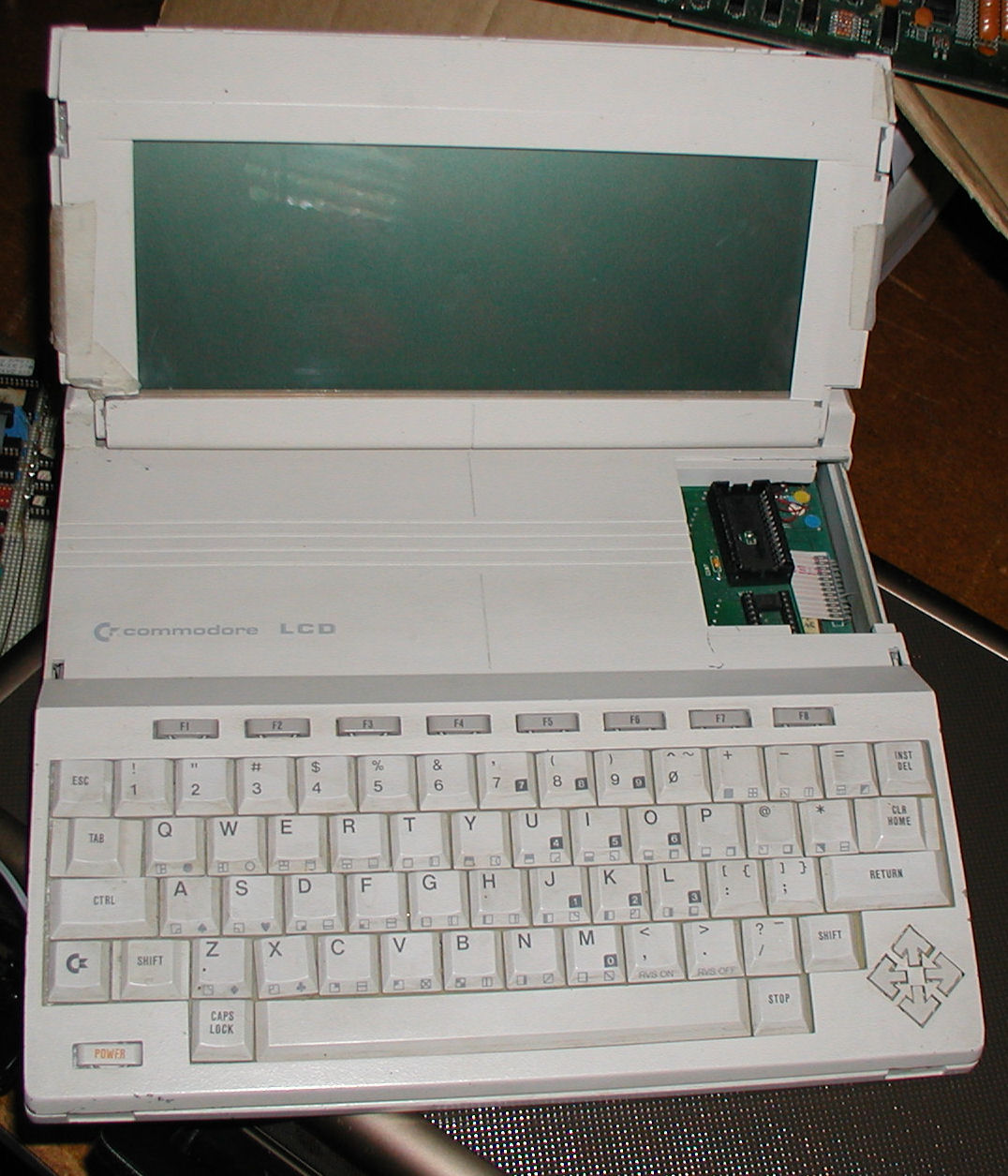

The only known Commodore LCD laptop

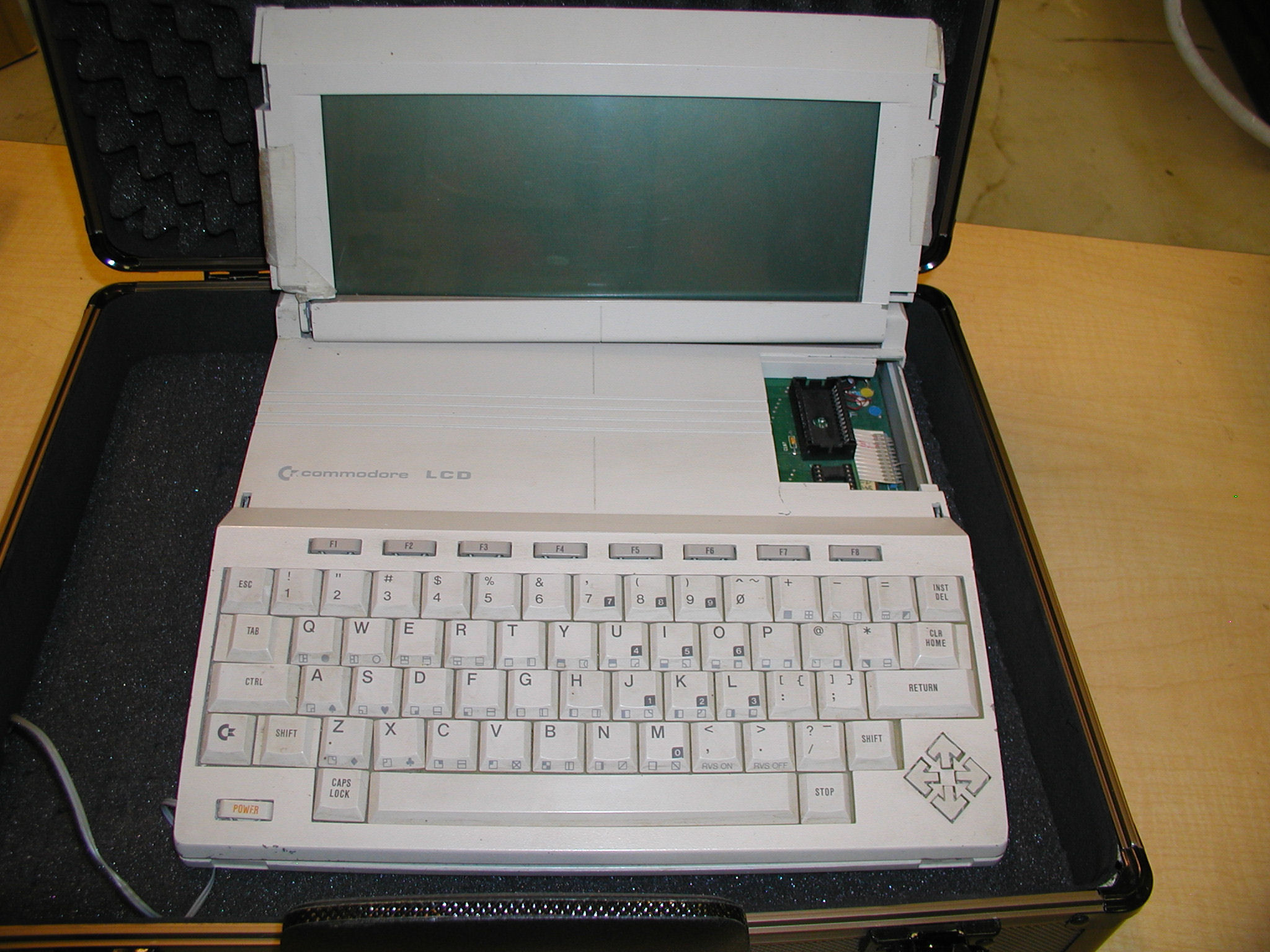

Commodore LCD laptop, cover open

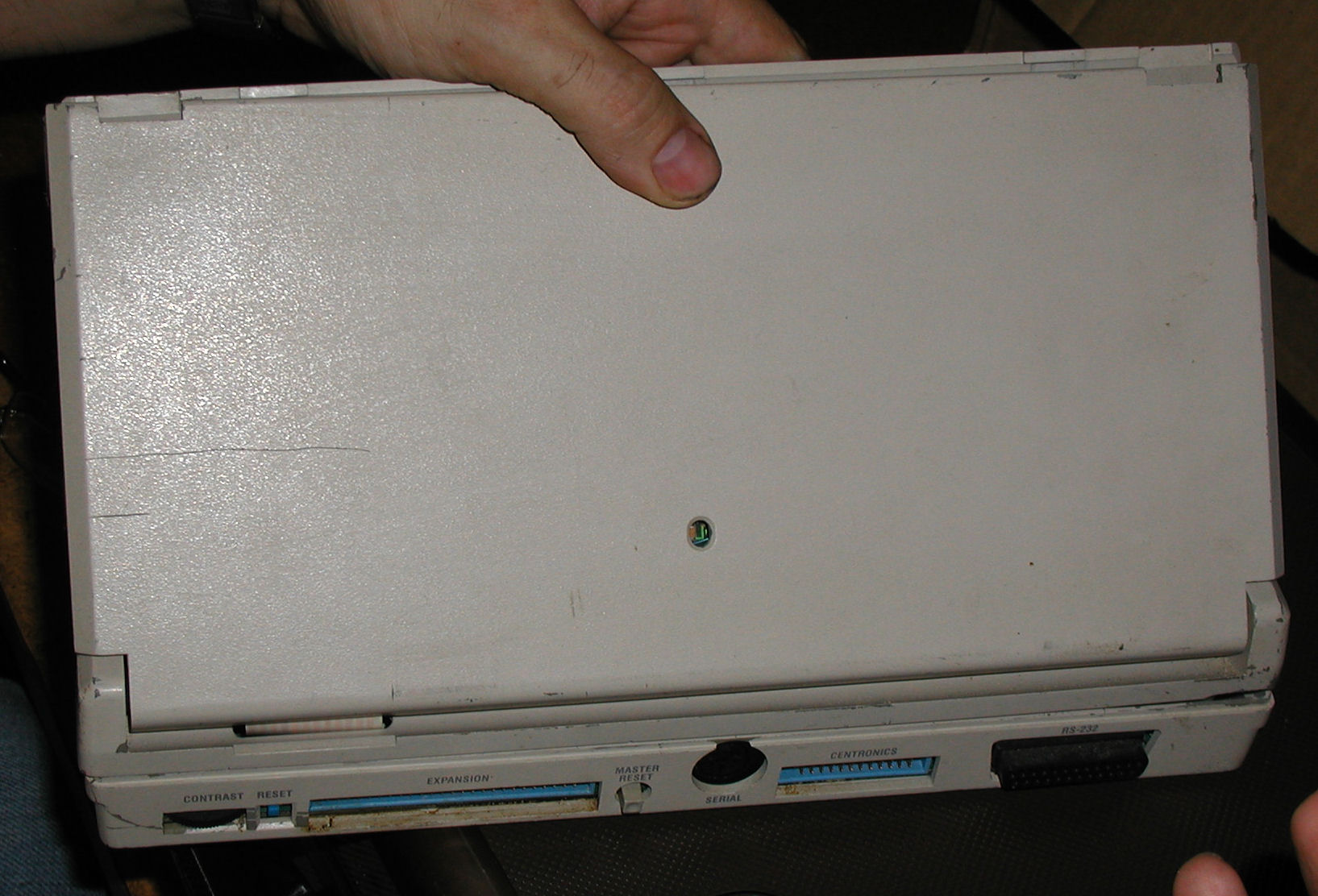

Commodore LCD laptop, rear ports

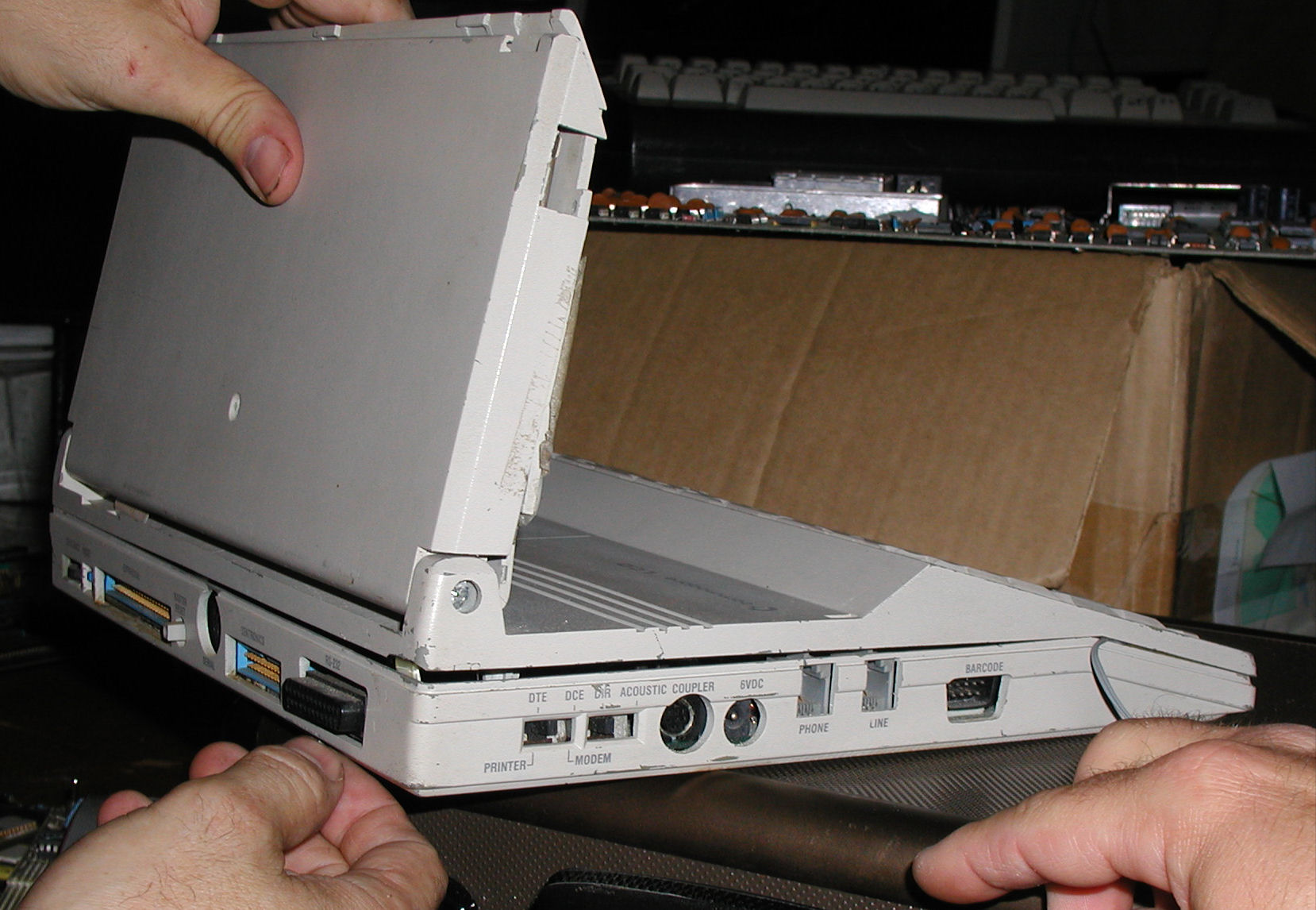

Commodore LCD laptop, side left ports

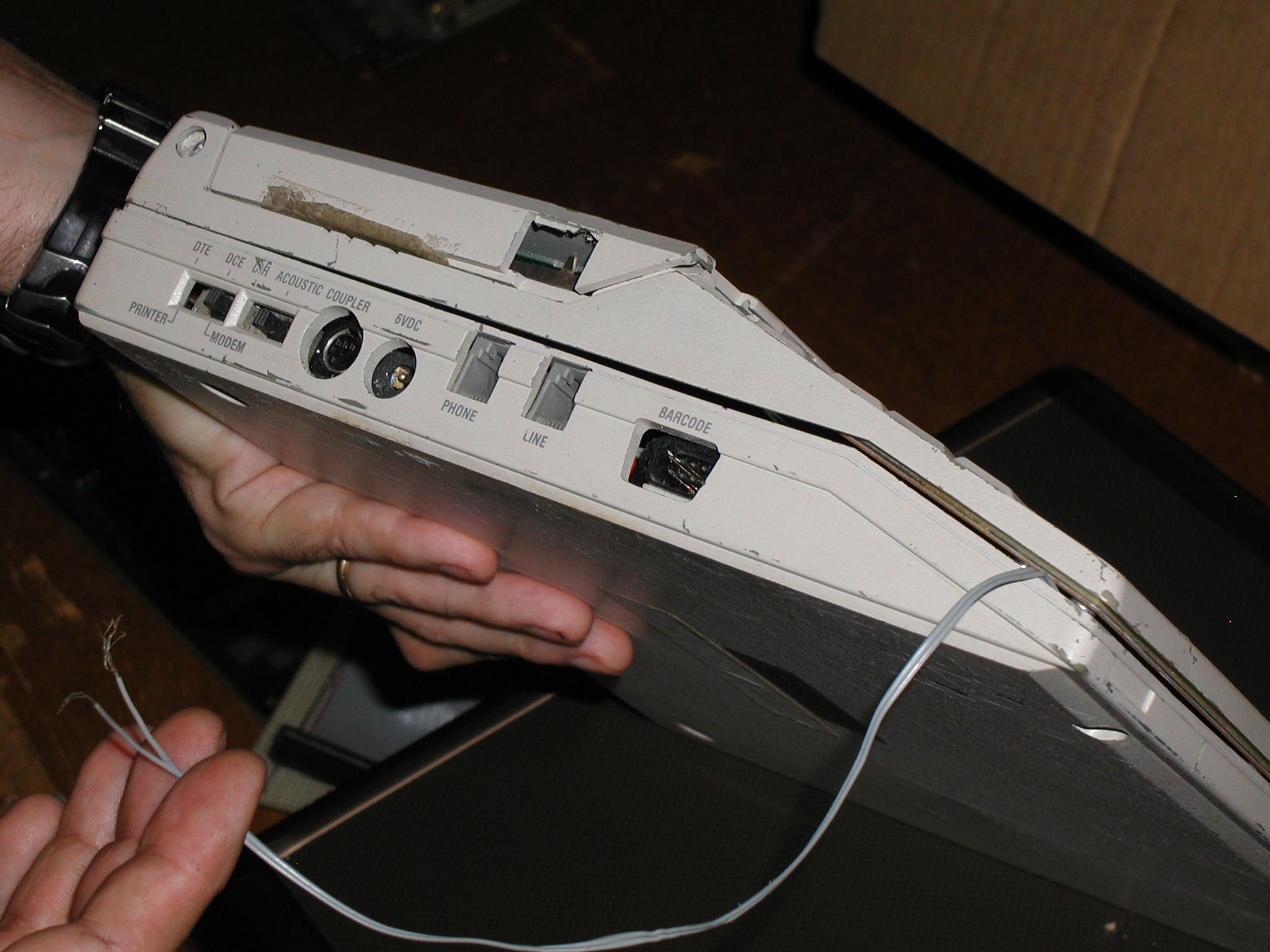

Commodore LCD laptop, side right ports

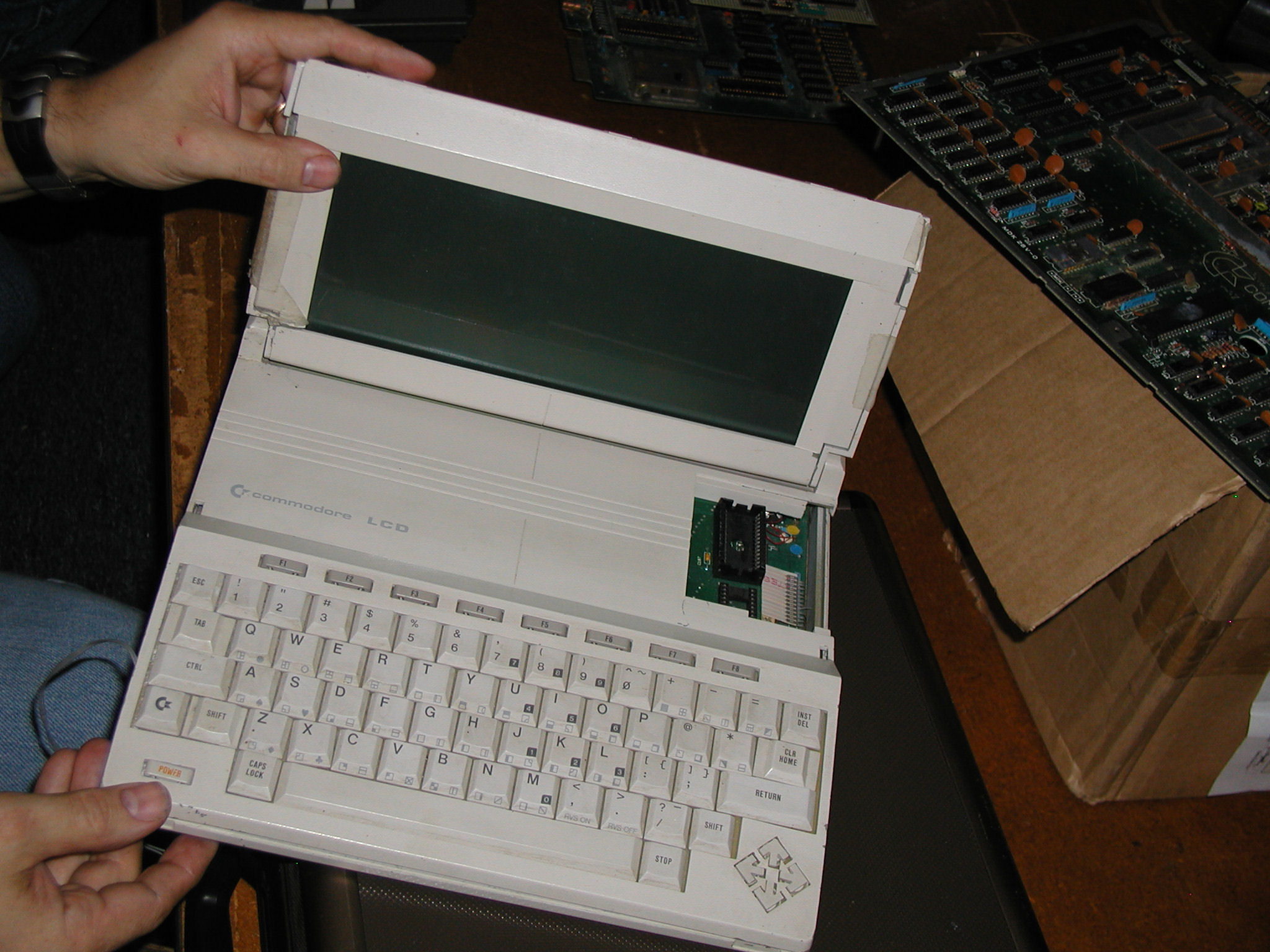

Commodore LCD laptop, top view

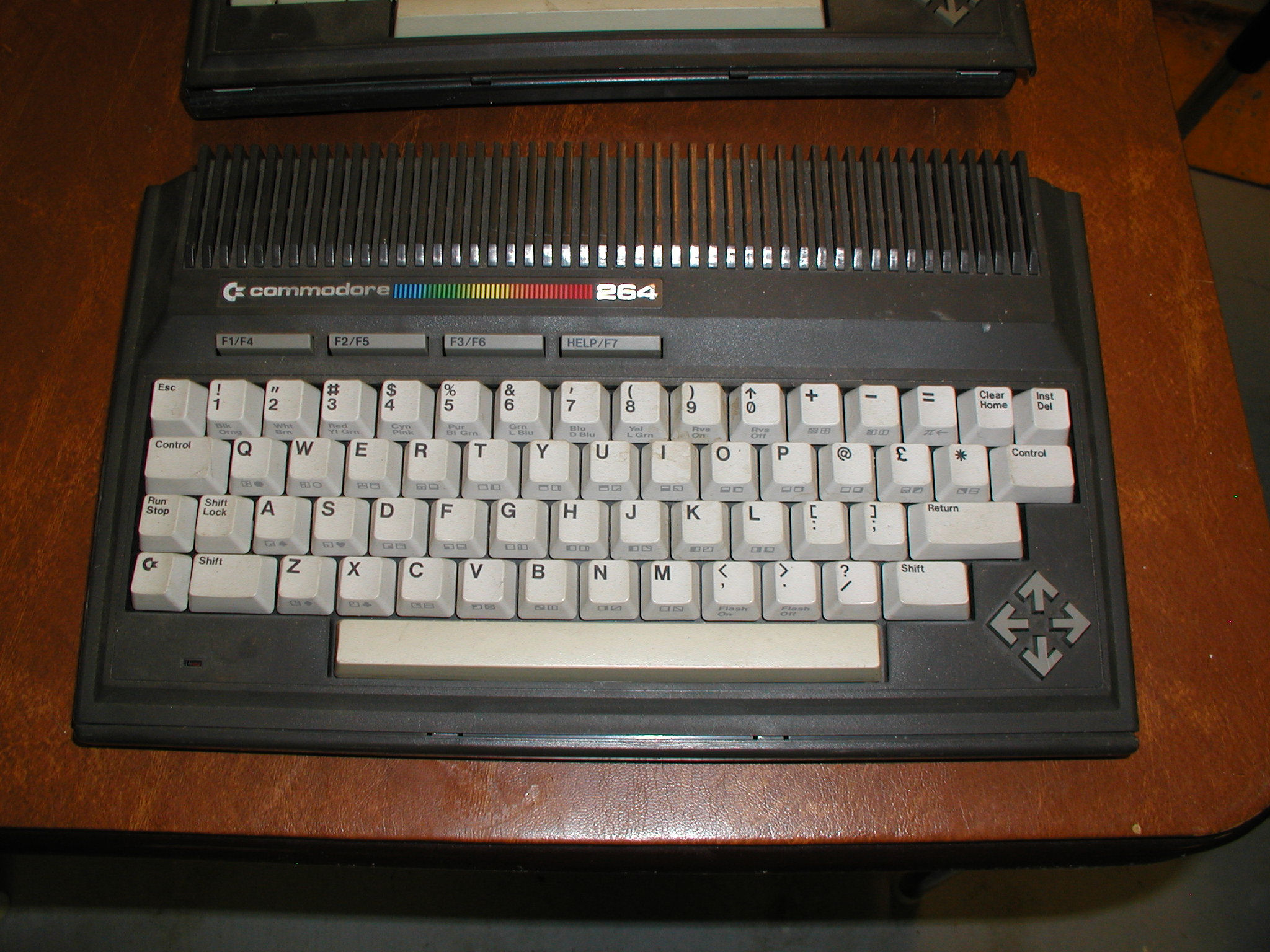

Commodore 264

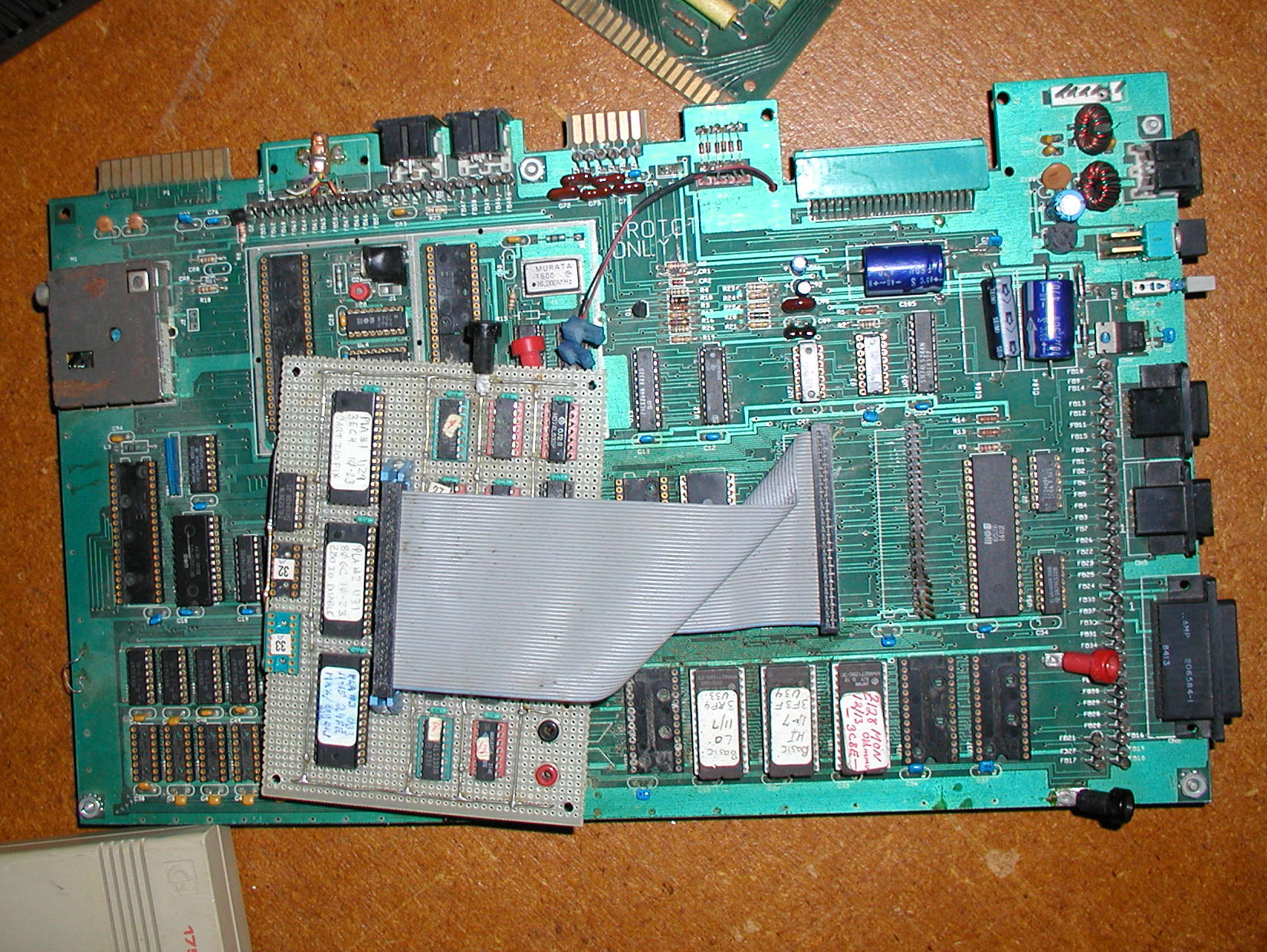

Commodore 128 Motherboard Prototype

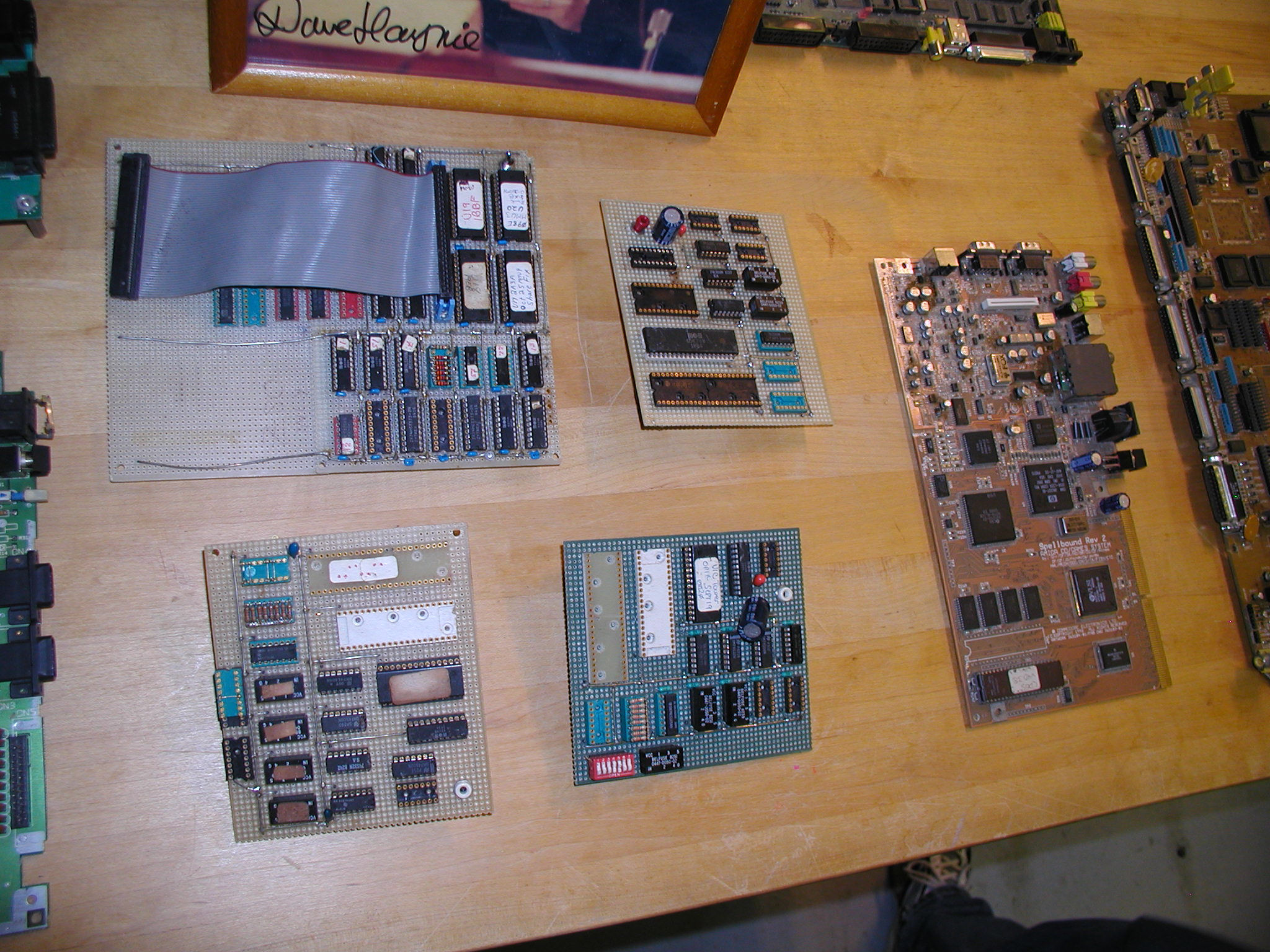

Various Shop prototype boards

More pics from the VCF Exhibits

Commodore Midwest Regional Staff Newsletter Archives

Recently I received a stack of old newsletters from the Commodore Midwest Regional Staff. These were sent to the service technicians. Please contact me if you'd like more information/copies. Here are a few interesting tidbits.

Make your CBM 8032 think it's a VIC 20
If you have a Commodore PET 8032 and you want to make it think that it's a VIC 20 try this:

poke41,16:poke4096,0:new [enter]

...You'll get a syntax error, but you can ignore it. Try loading a BASIC program meant for a VIC 20. It should work as long as the program has not pokes or sys calls.
Summarized from the Commodore Midwest Regional Staff Newsletter Dec 29, 1981


How to change the device number on a CBM 2031 disk drive programatically
The 2031 disk drive has a slightly different procedure for software changing of the device number. Use this short program to change it.

10 input"new device number";dn
20 open15,8,15:print#15,"m-w"chr$(119)chr$(0)chr$(2)chr$(dn+32)chr$(dn+64)

...where "new device number" = 8,9,10,11,or 12 depending on what you want to change it to.
From the Commodore Midwest Regional Staff Newsletter April 7, 1982


How to change the device number on a CBM 2031 disk drive permanently
Near the middle of the 2031 circuit board there are two diodes marked cr18 and cr19. By removing these diodes in the proper order, you have several device number choices.

cr18
cr19
device num
in
in
8
out
in
9
in
out
10
out
out
11

From the Commodore Midwest Regional Staff Newsletter April 22, 1982


Copying files to a CBM 2031 from an 8050 (or any drive)
"..the 2031, unlike the other Commodore drives, sends a reset on the IEEE bus when it is turned on. This resets all devices to their default device numbers. Thus, if you have changed the device number of the 8050 (or other drive) programatically, turning on the 2031 sets the 8050 back to device 8. The solution is simple: just be sure the IEEE cable is not attached when you turn on the 2031..." This will isolate the target drive from the bus reset, and leave the drive number as you set it.
Summarized from the Commodore Midwest Regional Staff Newsletter April 15, 1982


Commodore 4096?
"The 64K memory expansion board that converts the 8032 into an 8096 will also operate on the "FAT 40" 4032. The operation is the same as on the 8096." Purchase NOS expansion kits here!
Summarized from the Commodore Midwest Regional Staff Newsletter April 15, 1982


New History of CP/M Web Site

A new web page by Herb Johnson was published this month to document the important points regarding the developmental history of CP/M and Digital Research Inc. CP/M is an operating system originally written for the Intel 8080 processor in the mid 70's, further popularized on Z-80 systems. Herb has posted his research on his web site, retrotechnology.com.

Using Toggle Switches to Analyze Memory

Wondering how to read memory using toggle switches on an old Altair computer? Do you have an IMSAI or Cromemco but don't know how to load a bootstrap program into memory? Do you want to test a system to see if it's working correctly? Perhaps I can get you started. At the Vintage Computer Festival East I gave a talk titled "Vintage Computer Hardware 101 Featuring the MITS Altair 680b" You can download the Power Point presentation here.

Comments / Questions?

More Pics from VCF E 2007

Click Image for larger versions

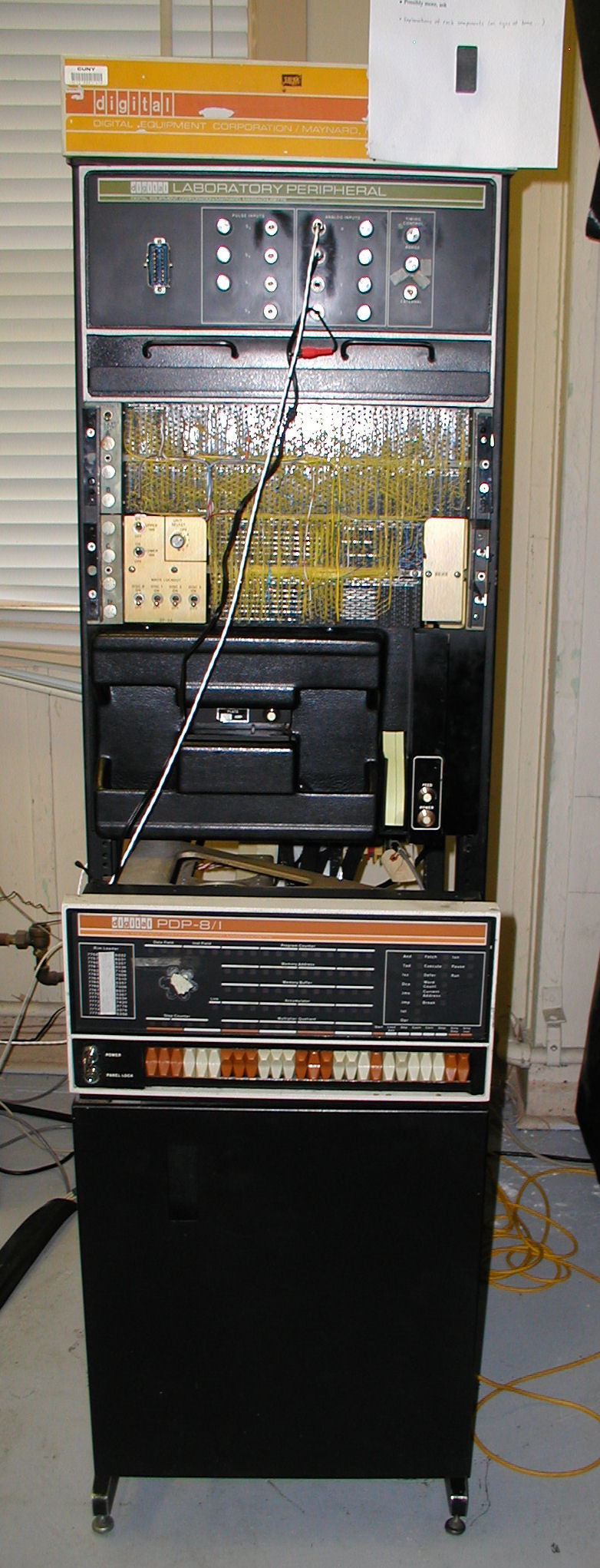

PDP-8/I

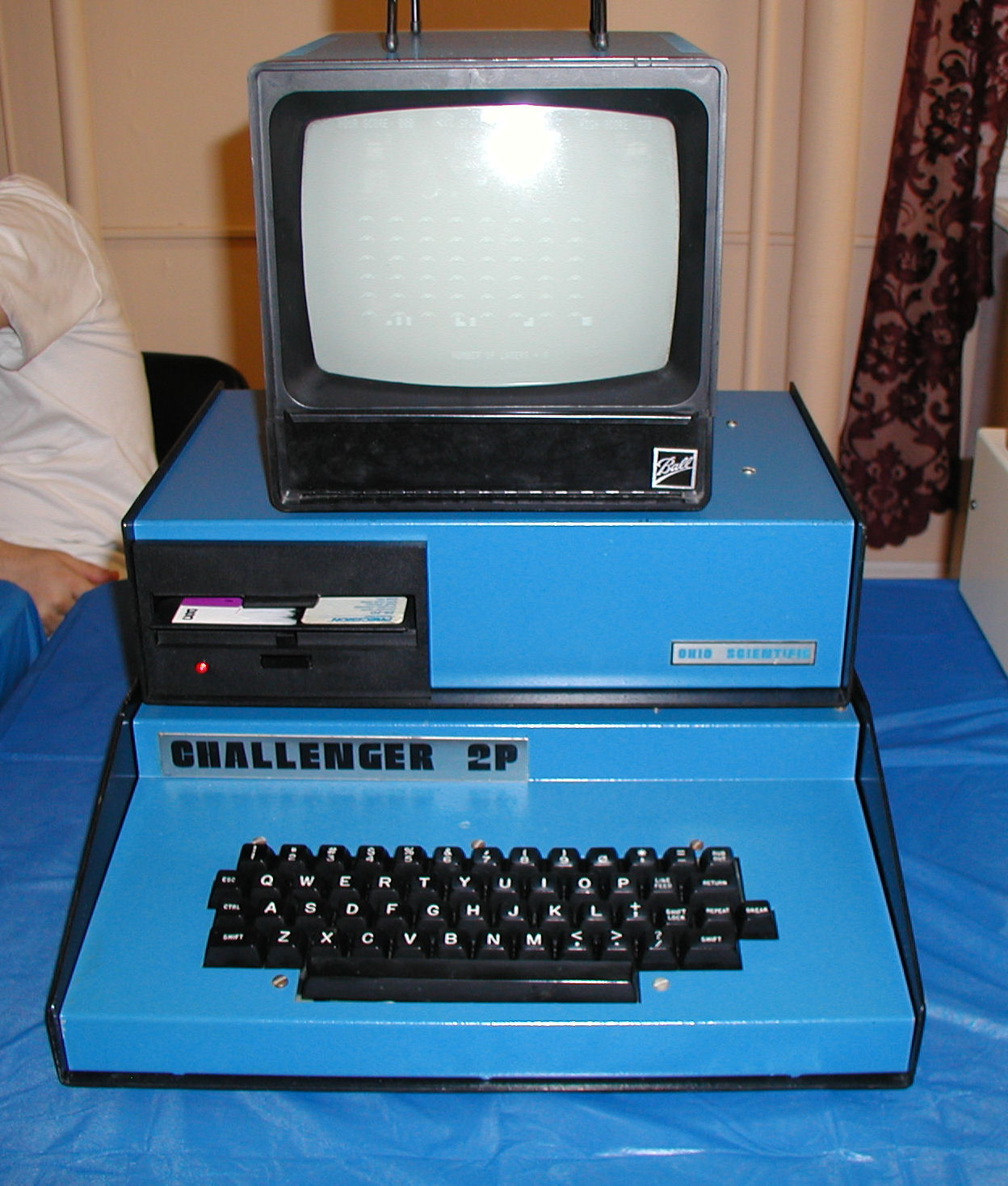

An Ohio Scientific 2P

Past Issues:

On the Work Bench - Jun/July 2007

These are some of the computers and things that I am currently working on, or have recently picked up. Check my Vintage Computer Blog for updates, or post your questions.

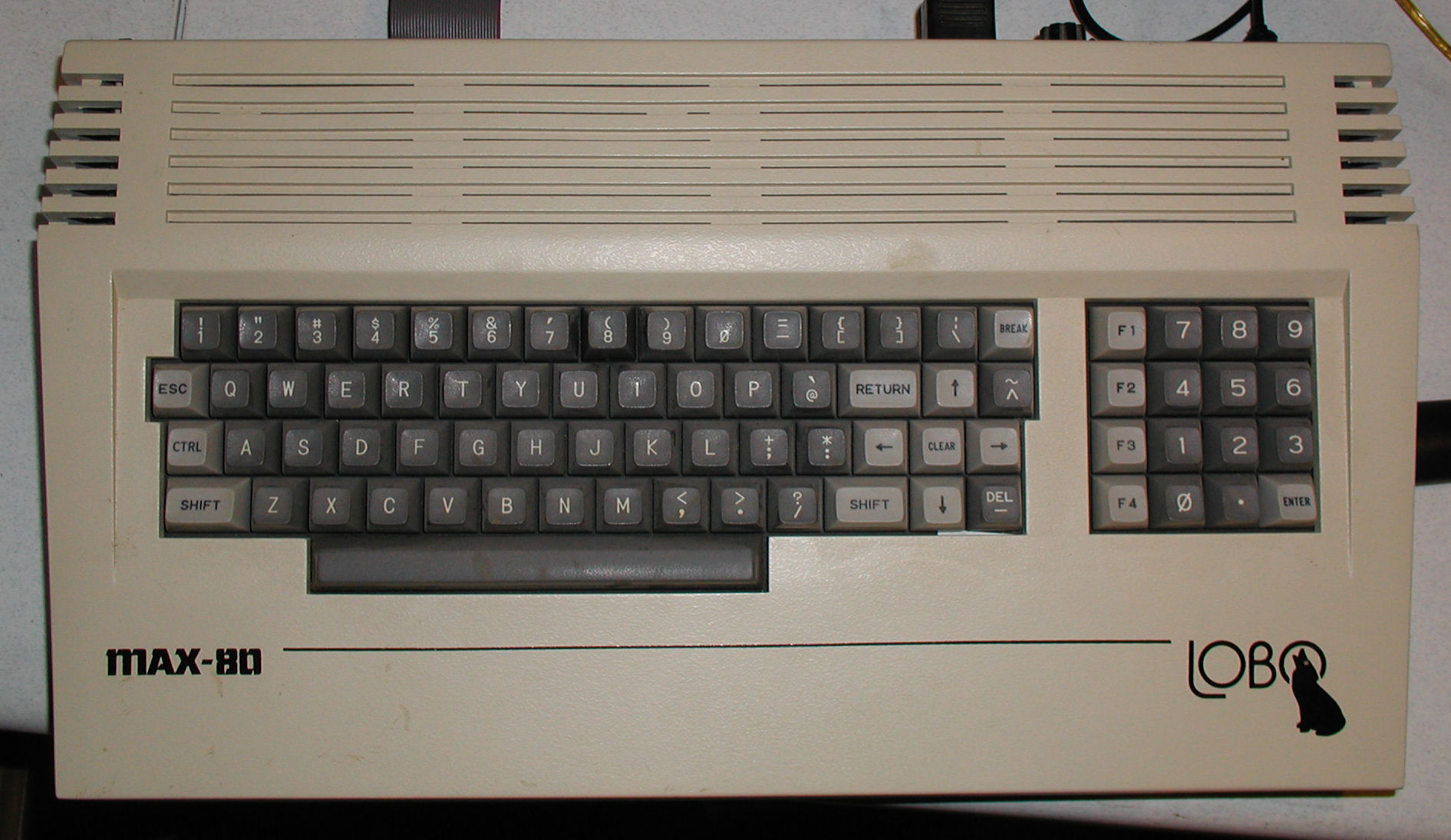

Lobo MAX 80

Click Image for larger version

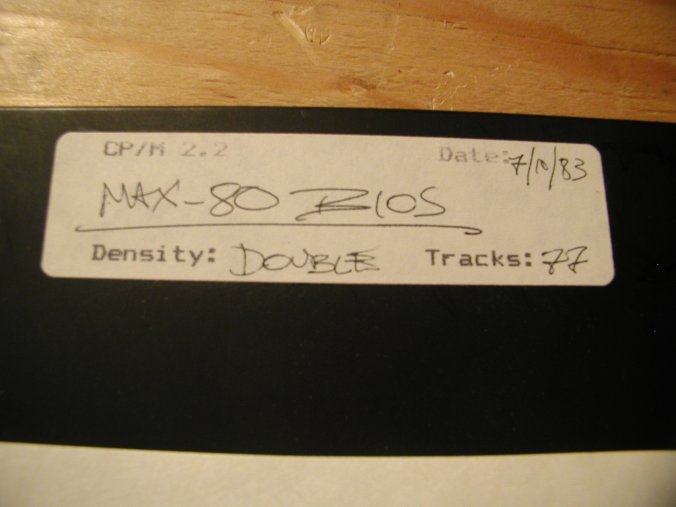

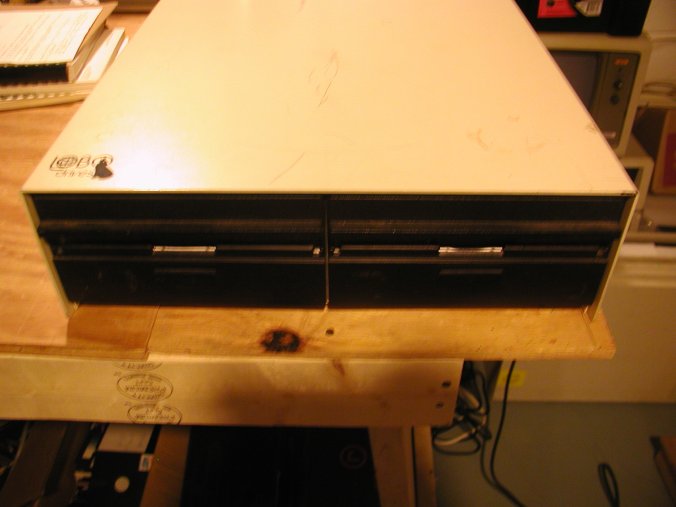

When you first power up a MAX 80, it responds by sending out a short beep every few seconds. That's the system telling you it needs a boot disk. If you plug the computer into a monitor, you'll only see a bunch of garbled characters...this is normal although not necessarily enough to inspire confidence when you have no boot disk to test with. And for two years, that's as far as I could get. I had been attempting to boot the system with a disk I found labeled "MAX-80 BIOS" on a Lobo twin 8" disk drive, but I had no idea if the disk was a system disk or just plain bad. I did not have a lot of confidence in the drive either. Every once in a while I would pull the system off the shelf, hook up a new combination of cables or drives or disks to see if I could make progress. No luck.

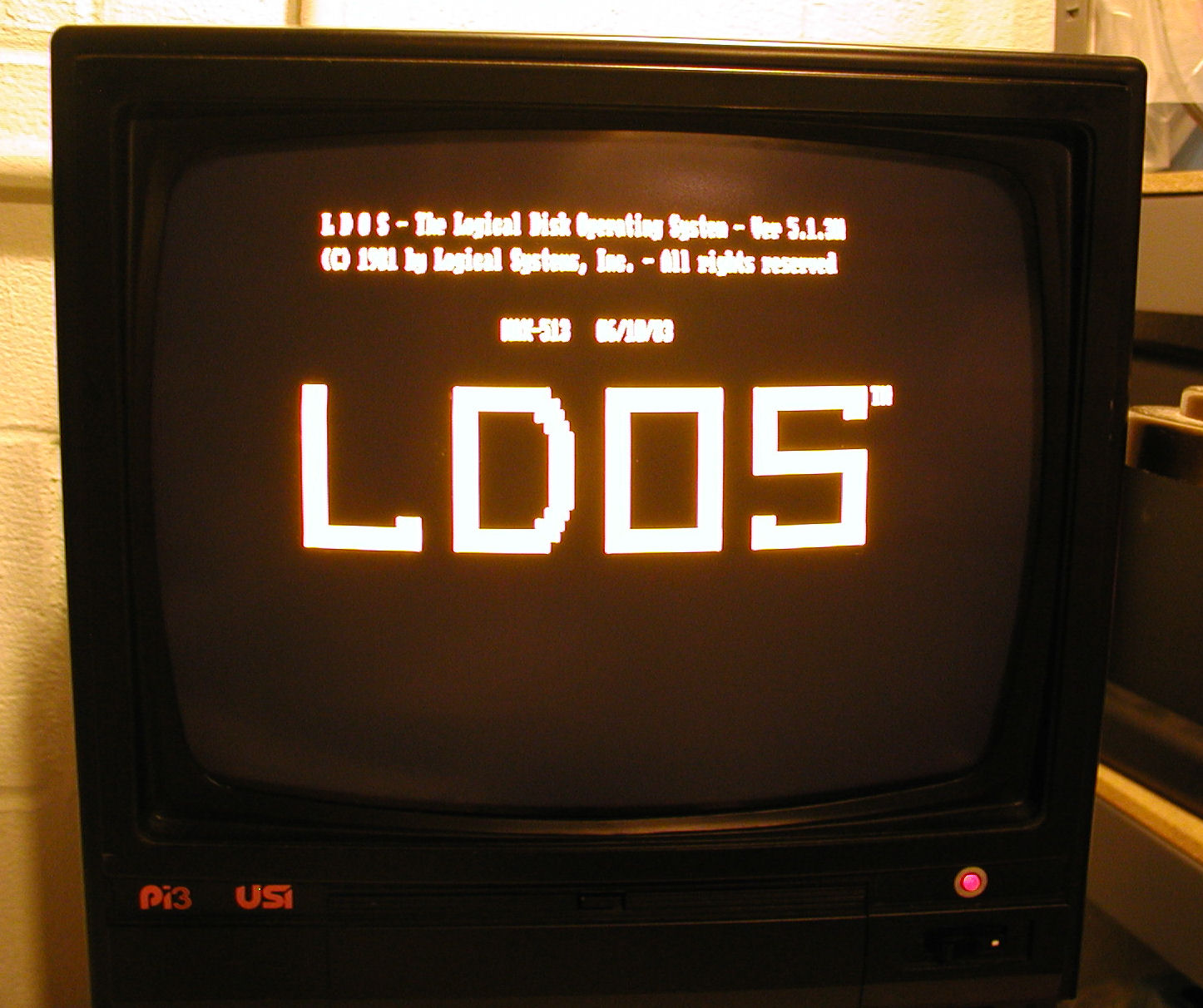

"LDOS 5.1.3 v. MAX513" Click Image for larger version

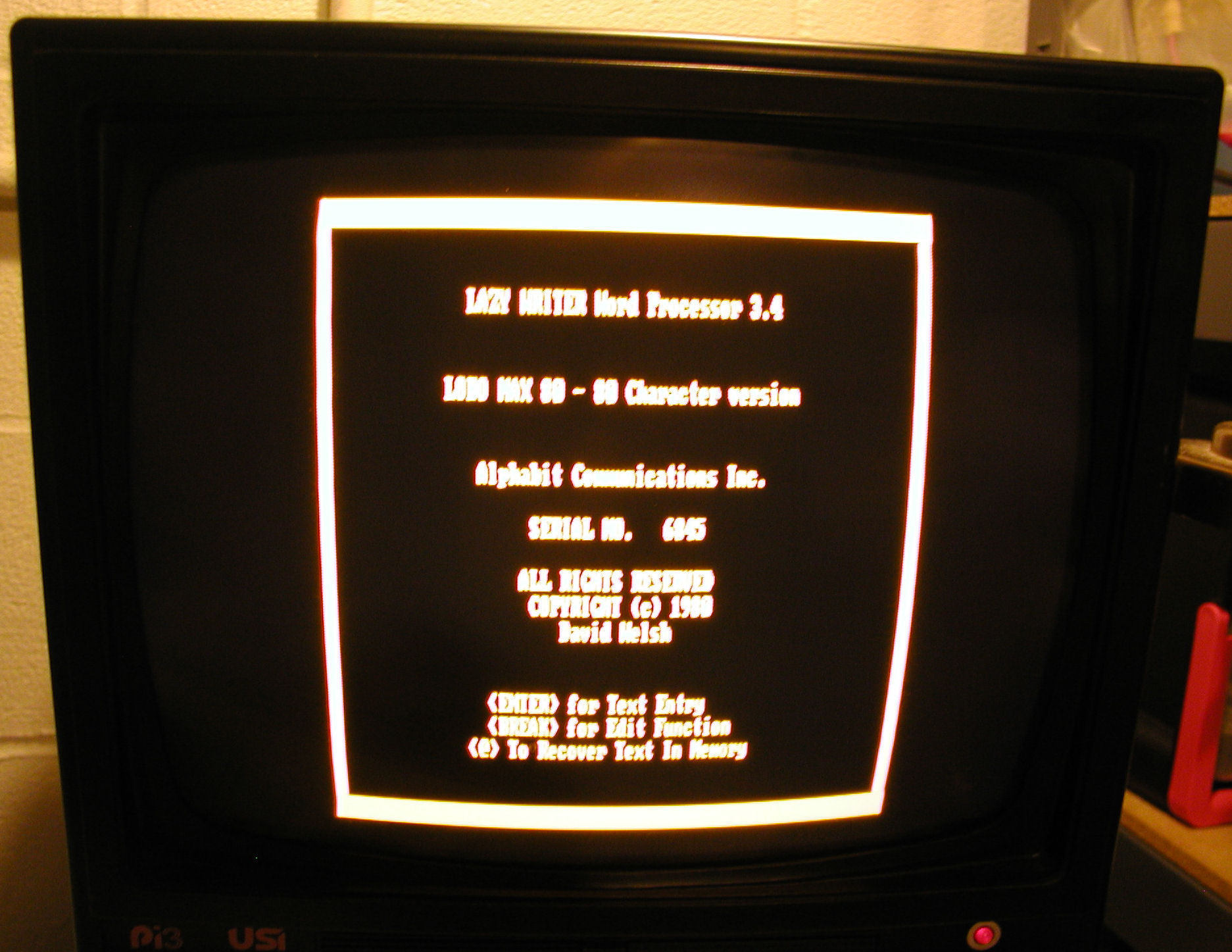

The big breakthrough came when I finally acquired another Lobo MAX 80, this time with some diskettes. Taking a known-working 5 1/4" Percom disk drive and the disks from the new Max 80, I was able to boot the LDOS 5.1 disk pictured above. I could then check file directories, etc. I was able to locate the program file needed to load Lazy Writer v 3.4. Unfortunately the Lobo CP/M disk that came with the system did not boot. I was also able to duplicate the process on my original MAX 80, so now I have two working units.

Comments?

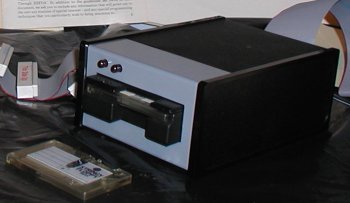

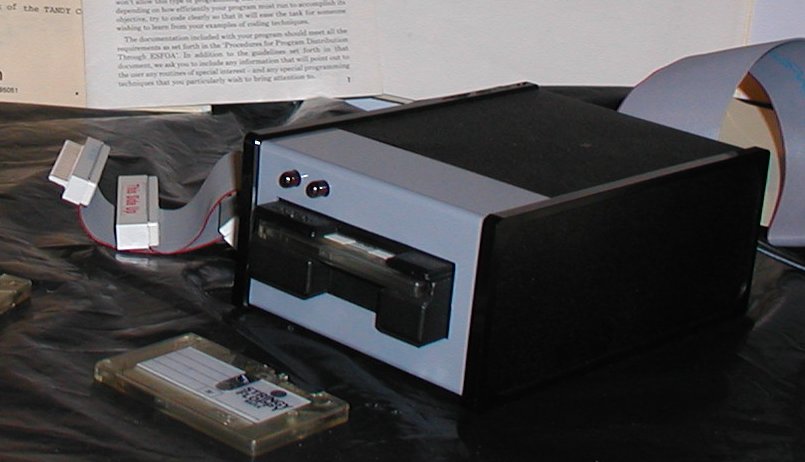

Exatron Stringy Floppy

Click Image for larger version

The Exatron Stingy Floppy was introduced in April 1979 at the Computer Faire in San Francisco USA. According to the original order form (in my possession), a person could purchase a Stringy Floppy drive for either the a TRS 80, SWTPc or S-100 system. No SF was ever made for an S-100 (I assume equipped with a Z-80 processor), but there were some SWTPc 6800 users according to their newsletter. To date none have turned up that I know of making this a very rare item if you can find one.

At the time the SF offered an improvement over cassette storage, but reliability was a problem and the drives met only limited popularity. Eventually diskette drives became less expensive and both the cassette and SF fell out of favor.

The Stringy Floppy Wafers are 2 11/16" x 1 9/16" and they function similar to that of cassettes, except that they're on a continuous loop, no rewinding is needed.

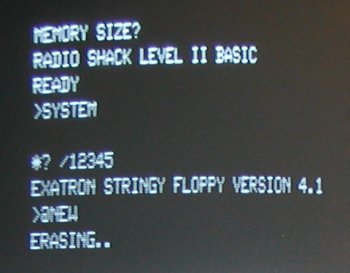

Snapshot of the initialization process on a TRS 80 Model 1

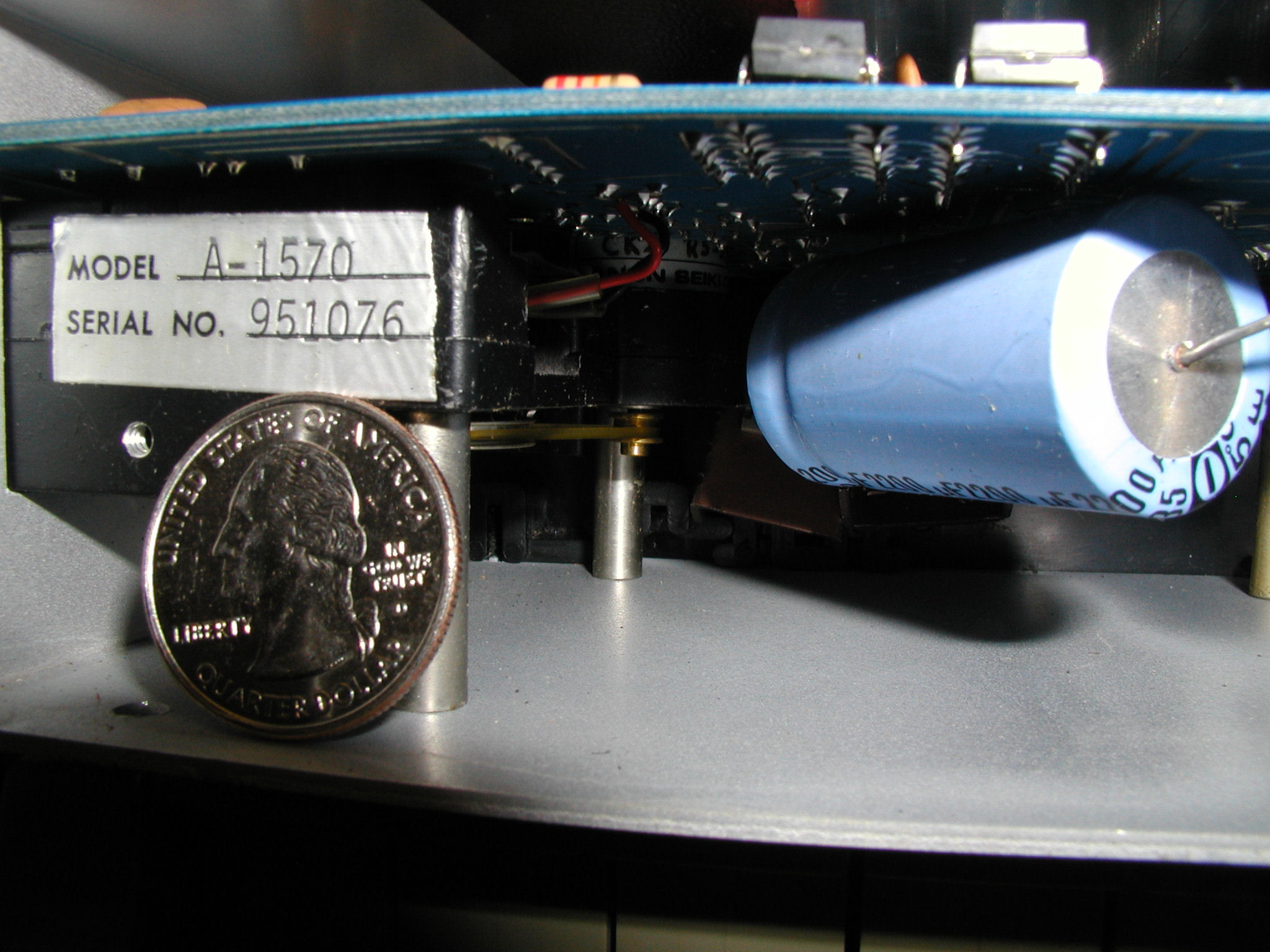

A close up view of the drive belt. Click Image for larger version

At first I was able to engage the system, format a wafer, load programs, and save files using the SF with a TRS 80. Just before the Vintage Computer Festival East 2007 the drive belt snapped! I attempted to roll my own belt using a latex band. The results were inconsistent. You can see in the picture above a closeup of an intact drive belt. The belt powers the spindle that moves the "string" past the read head, and that's the only moving part in the drive. I tracked down Robert Howell, the inventor of the Stringy Floppy, and asked him if he had a drive belt in a drawer someplace. He laughed and said he long ago did away with that stuff. We also discussed the history of the Stringy Floppy drive and how it all came about. I will write more on this subject soon.

Fortunately I was able to get another SF drive and I am in the process of converting wafers to cassette and/or disk. I will post the results in the blog section. More SF info here
