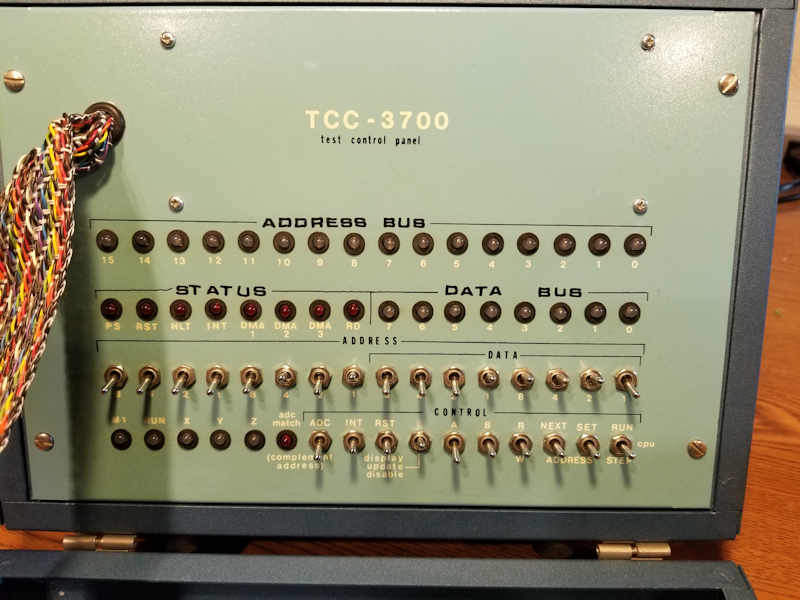

The TCC-3700 Test Control Panel was an Intel 8080 CPU-based computer designed to convert IBM data signals to RS 232 (?) or some other standard. The front panel connected to a TeraDyne component rack with wire-wrap controllers. The system had ROM stored on three 1702A and other programming stored on 2708 ROMS, indicating that this system was designed in late 1974 and updated while in use through the late 1970s.

Click on column header to change sort order:
Name Size
i8080 panelSystem.pdf 317,023 KB

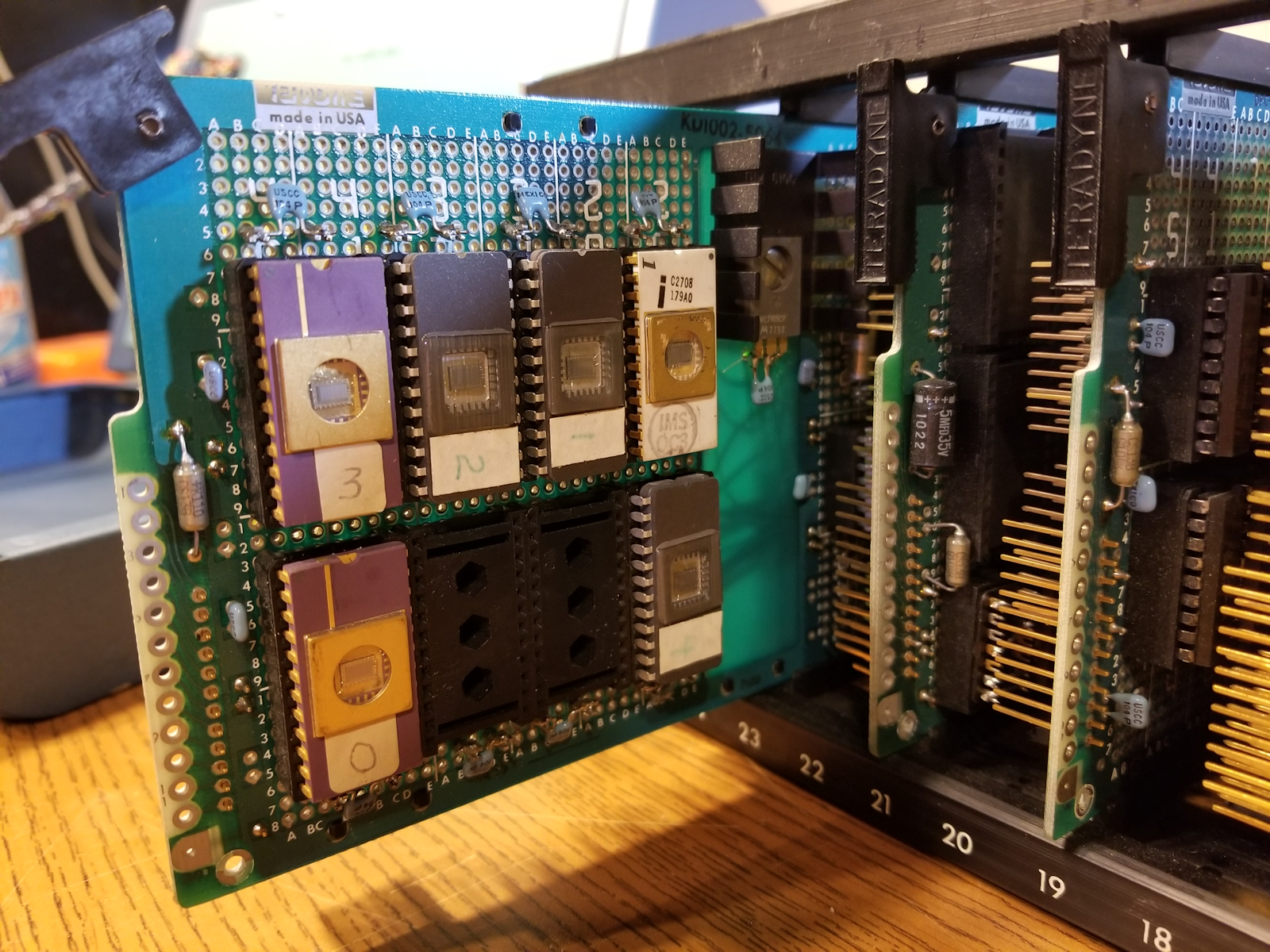

TCC-3700 2708ROMBoard.png 4,594,205 KB

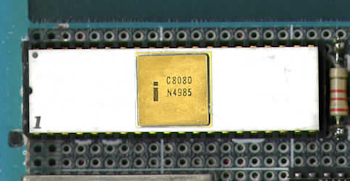

TCC-3700 8080.png
TCC-3700 8080Board.png

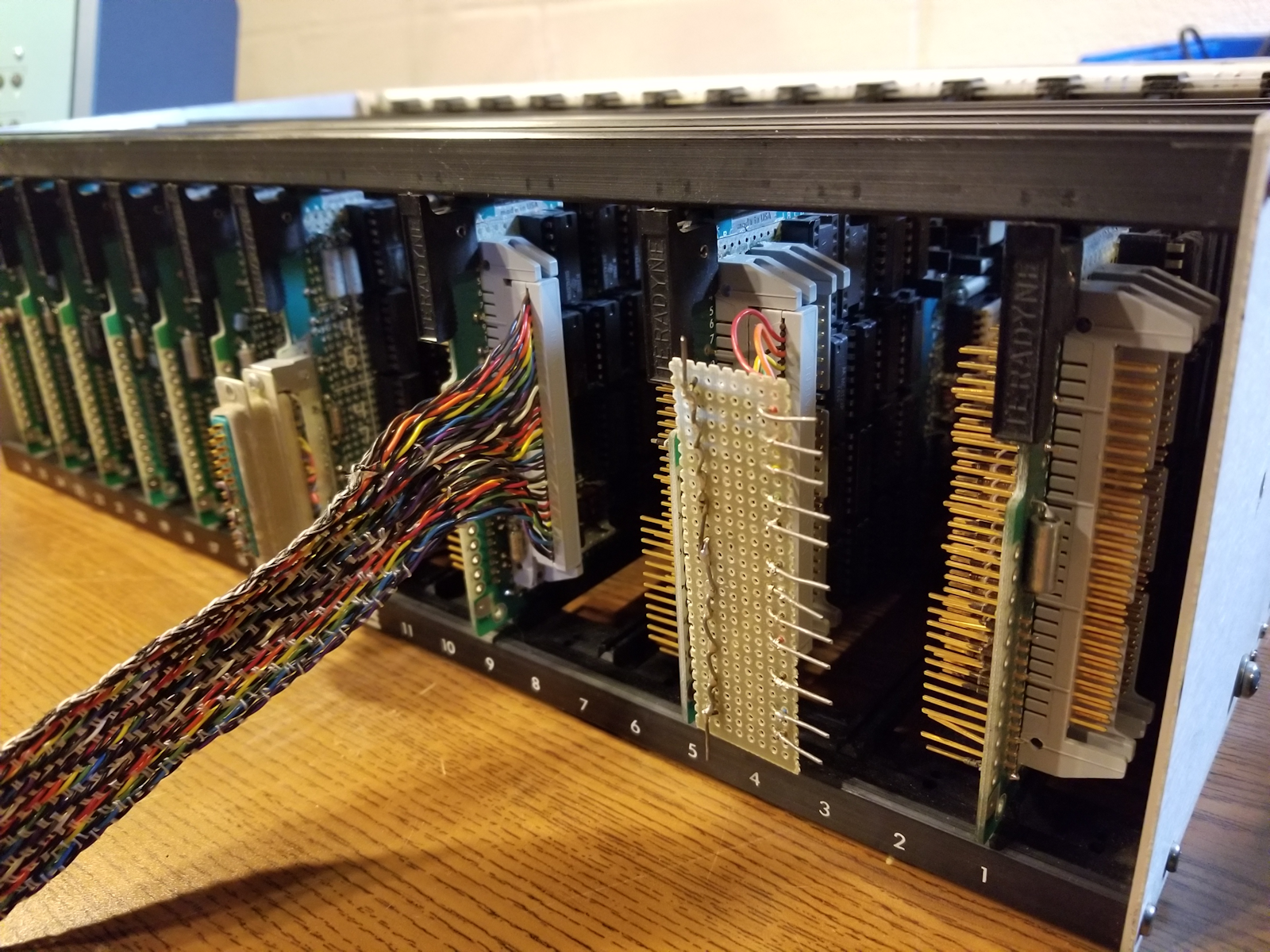

TCC-3700 InterfaceBoard.png 4,420,545 KB
TCC-3700 panel.png 908,965 KB
TCC-3700 PowerConnections.png 908,876 KB
TCC-3700 ROMMonintorBd.png

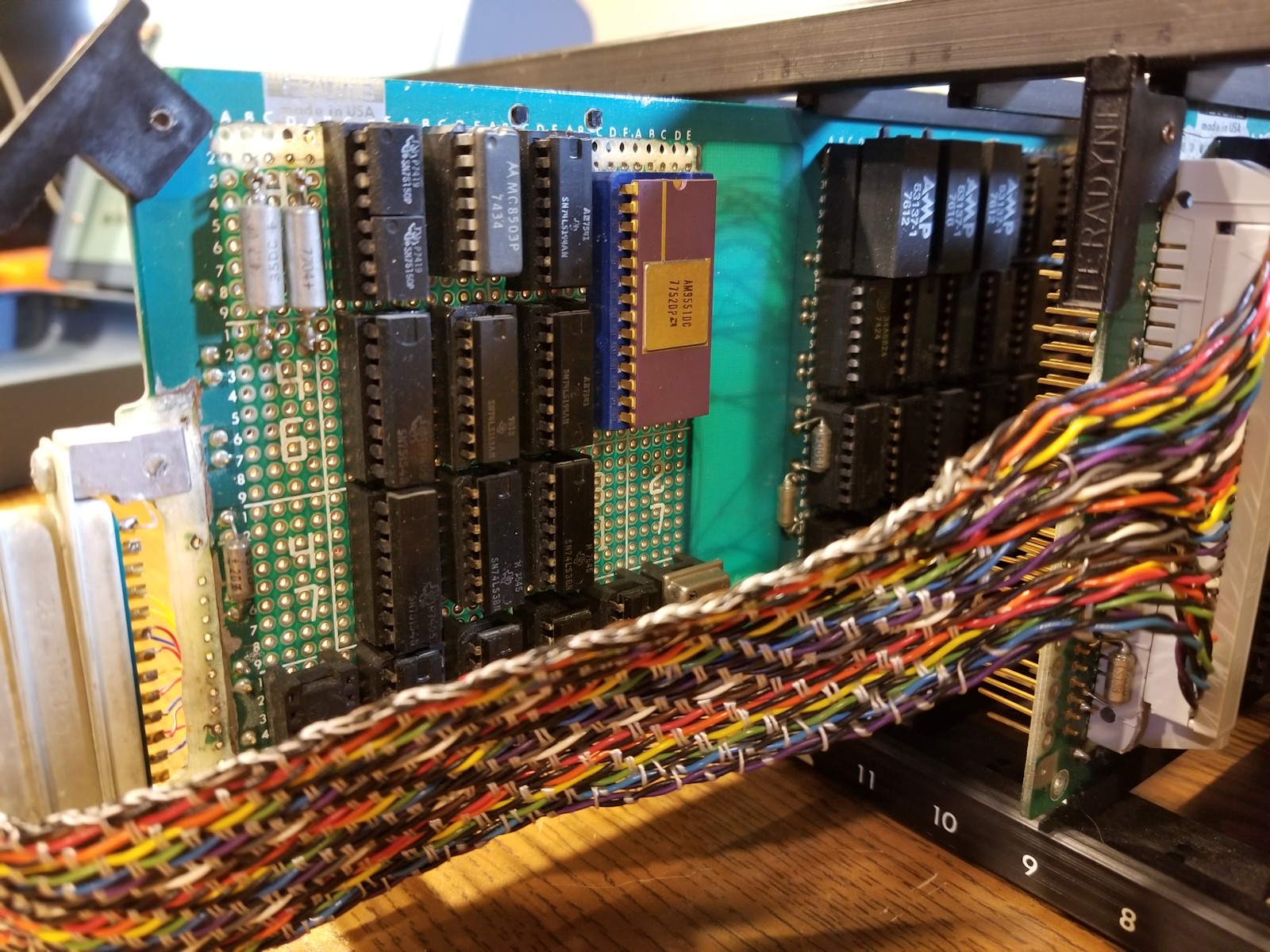

TCC-3700 SerialBoard.png 4,846,234 KB
TCC-3700 system-2.png
TCC-3700 system.png

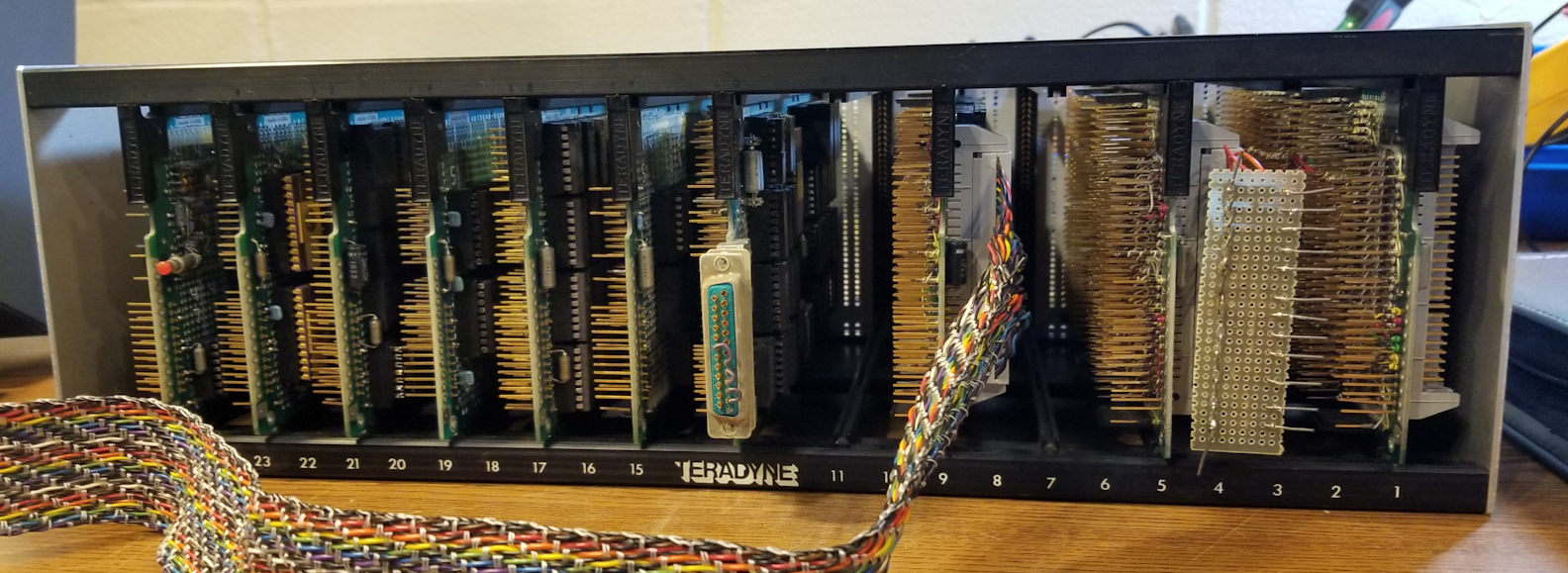

TCC-3700 TeraDyneRack.png 2,170,831 KB
