  1993 HP NetServer 4d/66 LM by Bill Degnan - 03/13/2018 13:52
HP Netserver 4d/66 LM With Pentium Upgrade
The HP NetServer 4d/66 LM with Pentium 66 upgrade installed was among the initial class of Pentium 60/66 machines sold in the USA. As far as I can tell, the name plate is the only thing differentiating this unit from a 4/66 LM that shipped with the Pentium installed by the factory. I have the 486 EISA card that was removed from this computer after it received a field upgrade. Click for larger view.

HP Netserver 4d/66 LM With Pentium Upgrade
HP's NetServer Pentium 66 was not integrated into the motherboard like a modern CPU. As you can see here the Pentium 66 is connected to the backplane via an EISA card. Click for larger view.

The installation guide lists the one 466 and three Pentium models as options of the same NetServer. I believe the 4d/66 was the "cheap option" of the 4, but otherwise they're identical if upgraded.

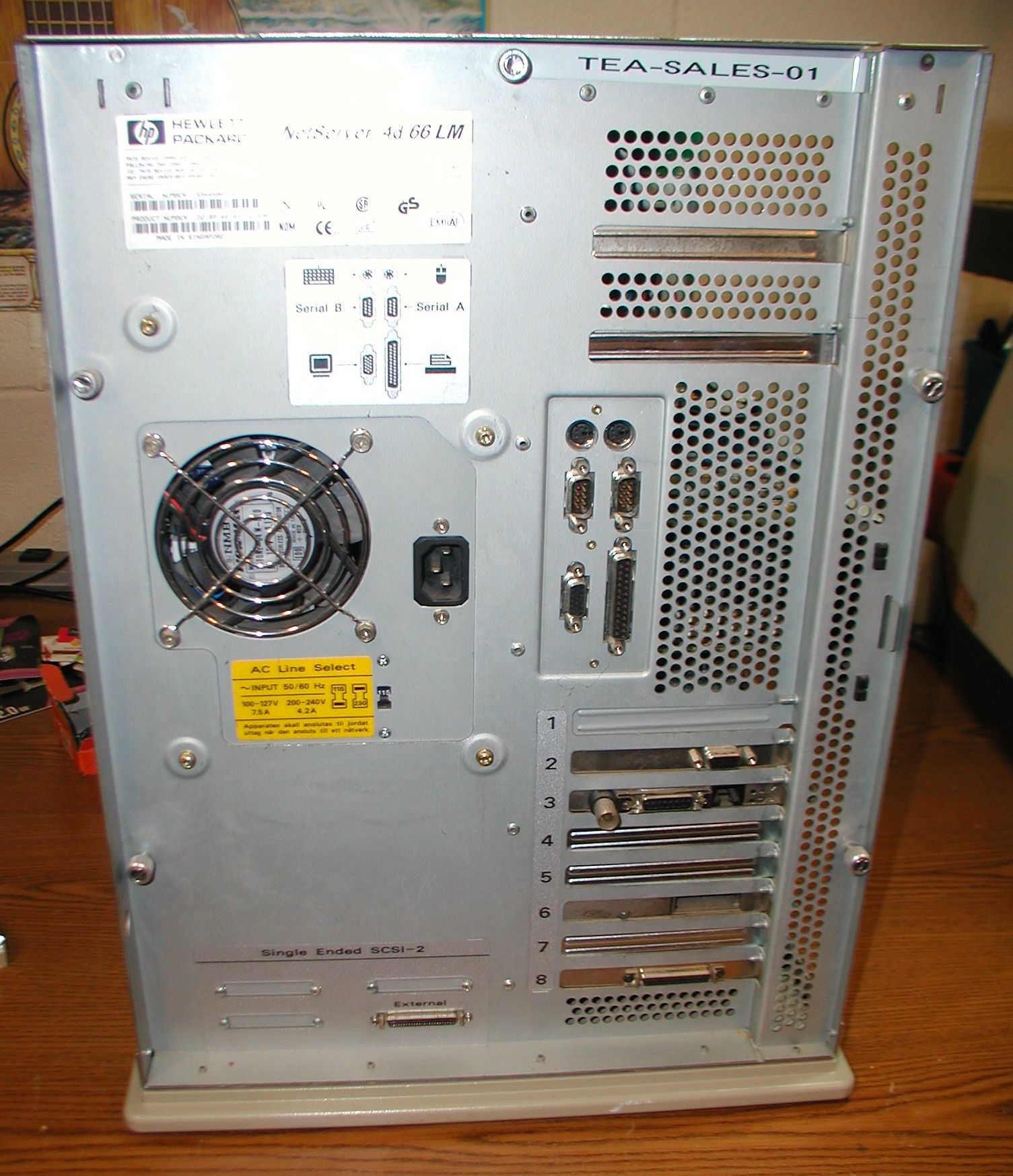

From the rear one can see an additional VGA port and ethernet card, plus another external SCSI port.

NEXT: - The power supply cut out. I located and ordered a replacement power supply.

More photos

  Battery Replacement by Bill Degnan - 03/18/2018 13:40
Concluded the issue with power is a dead Dallas clock chip not the power supply being dead, kind of a dumb thing for me not to realize that right away. Ordered the Dallas DS1287 from a US supplier.
