Large Apple III Collection
SHARE |
|
Large Apple III Collection |
by Bill Degnan - 08/19/2010 14:23 |

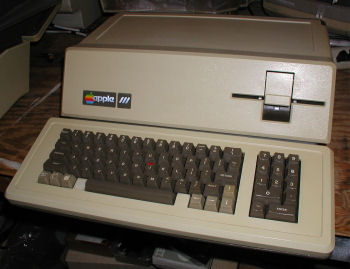

 The Apple III Plus Computer. This unit is configured to use three drives.
I received a very large collection of Apple III computers and related items including docs and software from David Otalini. I have only begun to work through the 20 or so boxes of docs, parts, software, and newsletters. In the mean time, here are some photos. Reply |
|
Apple /// A3S2-119540 Repair |
by Bill Degnan - 10/24/2010 15:43 |
|
Initiated repair Apple /// (apple iii) model A3S2 s/n 119540.
powers on steady fast beeping maybe 4 beeps per second. screen displays of broken horizontal lines, not a symmetrical pattern. Opened unit, found that it has an On Three 512 K memory board Disconnected keyboard no effect. Reply |
|
|
Replaced motherboard and keyboard light |
by Bill Degnan - 10/29/2010 15:50 |

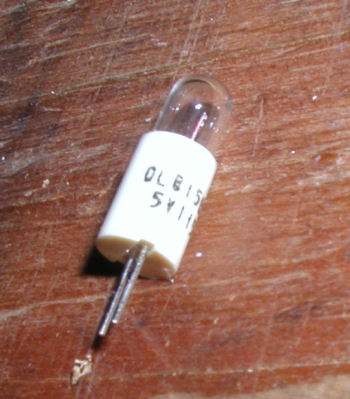

 Replaced the motherboard and the keyboard light bulb. The system now has only 128K, but it's back to stock configuration and it works. Nice and clean too.

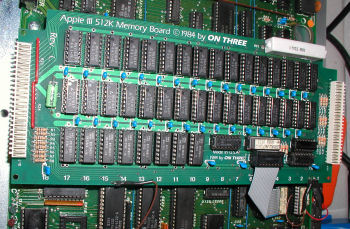

 Apple III 512K On Three RAM board
I put the motherboard with the 512K add on RAM board (pictured above) into a parts system that has no power supply. Reply |
|
|

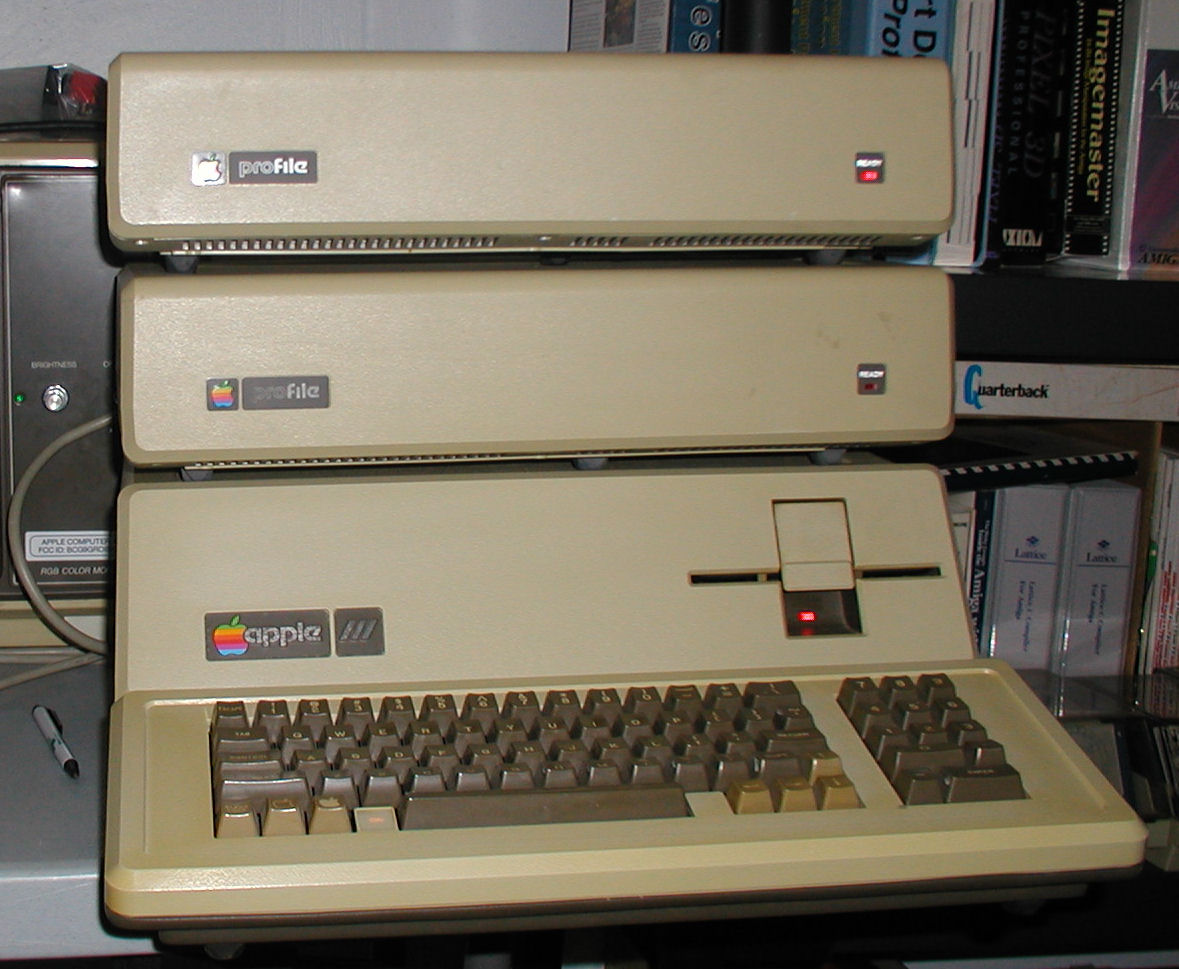

Profile 5MB Hard Drives |
by Bill Degnan - 05/08/2012 22:05 |

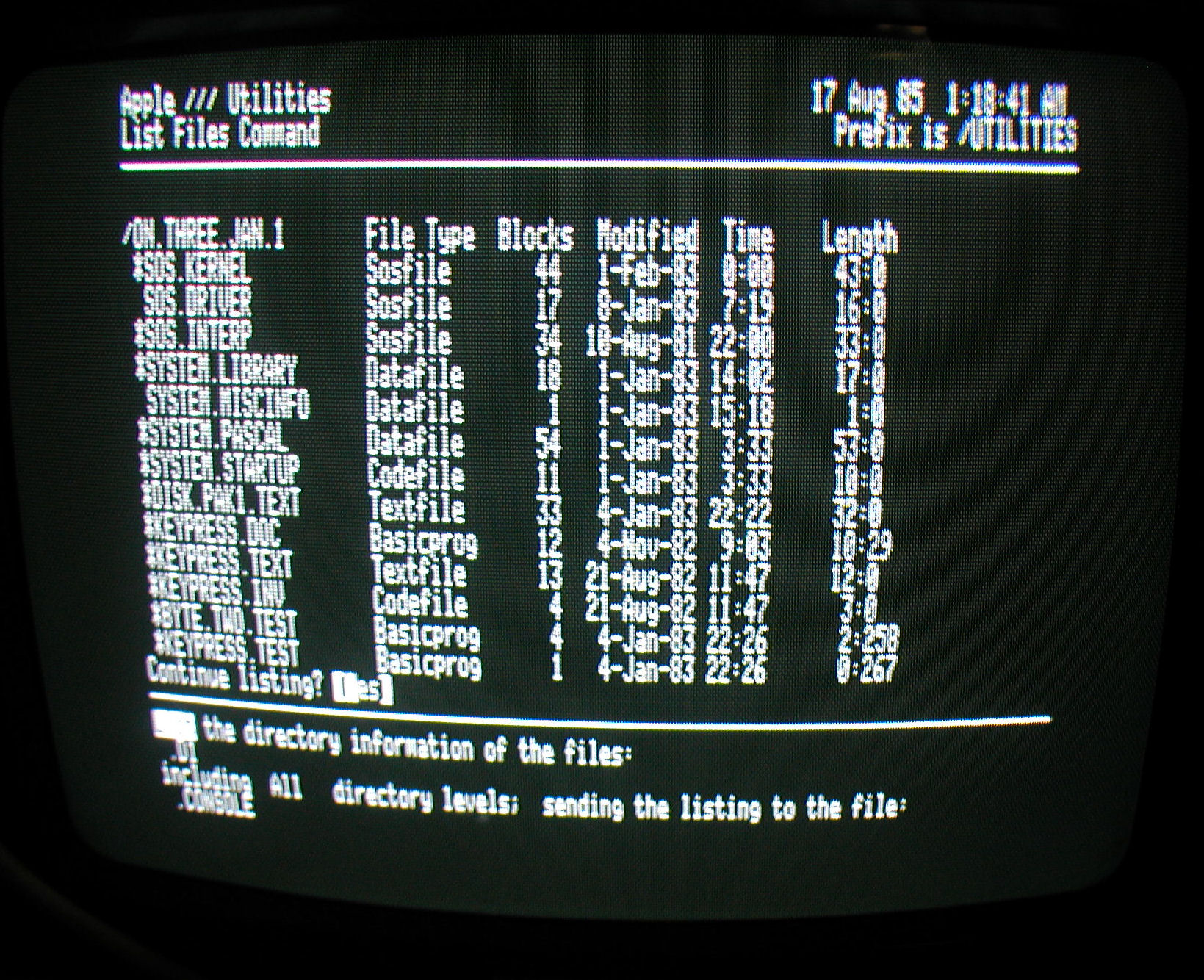

 Typical directory from a Apple /// system disk.
 Both of these drives are now functional after replacing blown "rifa" capacitors.
Reply |
|
